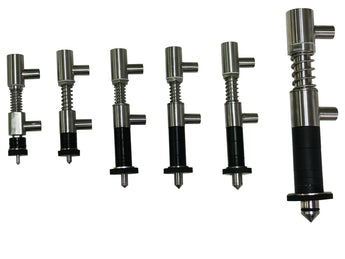

Nozzles

• 304 Stainless steel heavy duty stainless steel welded C frame.
• All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements.
• Special seals or hoses by order.
• Calibrated guide for fast height changeovers

Control panel features:

• OMRON PLC for all bottle filler machine logic functions.
• Three filling options on control panel (Up, Bottom Up and Down)
• Front panel conveyor speed control for machine sold with conveyor.
• Front panel mounted bottle counter.
• Front panel Start and Emergency STOP for easy access.
• Front panel nozzle code for changing nozzle quantities.
• Fiber optic sensors by Omron standard for container gating.

 Main components features:

• 6 Flowmeter with an Ultra-Compact Transmitter
• Special Tank 316ss or 304ss
• Level Sensor
• Precision Regulator
• Fast-Acting Pressure-Relief Valve for Air and Inert Gas.

Standar features:

• Entry and exit bottle gating cylinders adjustable, sideways, up and down and inside and outside.
• Will work with plastic or glass containers.
• No change of parts needed for various types of containers.
• Air filter-regulator and safety lockout valve included.
• Spacing and additional bottle control obtained by flow controls mounted on air gating cylinders.

Electric and pneumatic requirements:

• 220 Volts, 60Hz, 15 Amps.
• 20 CFM @ 80 p.s.i.

Tightener Features:

• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
• Heavy duty linear carriage system for height adjustability
• All shafts and threaded rods manufactured in 304 stainless steel
• Heavy duty casters standard
• No change of parts needed for a wide range of containers
• Front covers with safety interlock switches standard
• Top driven to insure no product spillage into drive assembly
• Adjustable height to accommodate containers from 1 inch to14 inches tall (Optional power height adjustment).

Capping discs features:

• 4, 6, or 8 spindle machine configurations available, single gear box driven
• Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
• Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
• Clutches located away from capping discs to avoid corrosion
• Heavy duty gear driven mechanism, no belts used for power transmission
• Adjustable speed 1/2 Hp drive motor for bottle capping discs
• Optional second drive motor to rotate the first set of capping discs on the opposite direction
• Capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials
• Independent adjustment for front or back capping discs
• Capping disc position is adjustable while the machine is running, without opening the safety covers.
• Fully adjustable for bottle cap sizes ranging from 8 mm to 130 mm in diameter

Bottle belts features:

• Bottle belt width adjusted via front knobs
• Bottle belt height adjusted via front knobs
• Heavy duty gear drive mechanism, no belts used for power transmission.
• Adjustable speed heavy duty 1/2 Hp, motor gearbox
• Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.
• Optional double belt assembly with independent height and angle adjustment

Waterfall feeder features:

• Construction in stainless steel
• 18 inch wide belt
• Cap feeder is adjustable for bottle caps from 8mm to 110mm in diameter, via quick adjust knobs
• Caps feed on demand, controlled by photoelectric sensor
• Air shutoff valve controlled by photoelectric sensor
• Includes air regulator and filter
• Feeder inclination adjustable from 0 to 5 degrees
• Complete height adjustment by structure 1 inch bolts and/or cap delivery system.
• 10 cubic foot cap hopper
• Drive provided by DC gear motor.
• Independent Speed Control (potentiometer)

Electric and pneumatic requirements:

• 220 Volts, Single phase, 50/60Hz, 15 Amps.
• 10 CFM @ 80 p.s.i.
