Bottom Up Nozzle 0.750in

$ 480.00



PRESSURE OVERFLOW NOZZLE BOTTOM UP
Sizes availables:
0.375in | 0.500in | 0.625in | 0.750in
Item Part No. Part Name Price
2 NOF-0.375-01-023

Washer, ID 0.406in, OD 1.250in

4 NOF-COM-01-004E

Nozzle feed

6 NOF-COM-01-006 Teflon washer

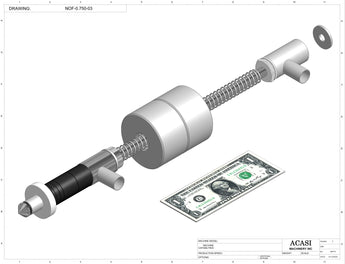

8 NOF-0.750-03-012E Fill tube assembly
10 JON-781 Compression spring, WIre 0.062, OD 0.750, Free Length: 20in
12 NOF-0.750-02-007 Weight 0.750
14 M1-35462779 Shaft collar 0.50in ID, 1.125 in OD
16 NOF-0.750-01-008 Stainless steel washer

Item Part No. Part Name Price
18 M1-59510610

U cup 0.50in shaft, 1.00in housing,

20 NOF-0.750-03-014E

Return tube assembly

22

NOF-0.750-01-017

Nozzle spacer 1.00in
24 NOF-0.750-01-020 Nozzle spacer 0.25in
26 NOF-0.750-01-022 Nozzle spacer 0.125in
28 NOF-0.750-01-023 0.750 nozzle fill bottom washer
30 NOF-0.750-01-024 0.750 nozzle fill pressure rubber
32 M1-09266123 O-Ring 112 viton
34 NOF-0.750-03-026 Nozzle tip
