Bottom Up Nozzle 0.375in

$ 604.00

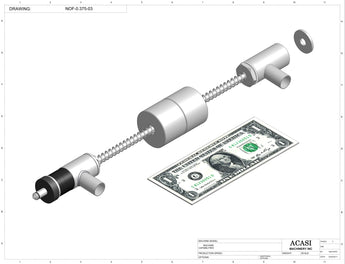

PRESSURE OVERFLOW BOTTOM UP NOZZLE
Sizes availables:
0.375in | 0.500in | 0.500in-V22 |  0.625in | 0.750in | 1.000in
Item Part No. Part Name Price
2 NOF-0.375-01-023

Washer, ID 0.406in, OD 1.250in

4 NOF-COM-01-004E

Nozzle feed

6 NOF-COM-01-006 Teflon washer
8 NOF-0.375-03-012E Fill tube assembly
10 MCM-9663K26 Compression spring,wire 0.054,OD 0.438in free length 20in
12 NOF-0.375-03-007 0.375 nozzle weight
14 M1-35462746 Clamping Two-Piece Shaft Collar
16 NOF-0.375-03-008 Washer,ID 0.500in, OD 1.250in

Item Part No. Part Name Price
18 M1-02050797

O-Ring Viton Dash Number 202, ID: 0.250", OD: 0.500"

20 NOF-0.375-03-014E

Return tube assembly

22

NOF-0.375-01-018

Nozzle spacer 0.50, tip 0.375
24 NOF-0.375-01-020 Nozzle spacer 0.25, tip 0.375
26 NOF-0.375-01-022 Nozzle spacer 0.125, tip 0.375
28 NOF-0.375-01-024 Bottle seal
30 M1-09265109 O-Ring Viton Dash Number 010, ID: 1/4", OD: 3/8"
32 NOF-0.375-01-026 Nozzle tip
