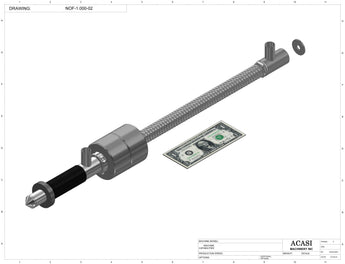

Automatic inline pressure overflow bottle filler machine, low viscosity, Assy NOF-1.000-02, by Acasi Machinery Inc.

$ 877.00

0.375in | 0.500in | 0.500in-V22 | 0.625in | 0.750in | 1.000in

Item	Part No.	Part Name
2	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
4	NOF-COM-01-004E	Nozzle feed
6	NOF-COM-01-006	Teflon washer
8	MCM-9663K93	Compression spring 2, wire 0.080, OD 0.968in Free length 20in.
10	NOF-1.000-02-012E	Fill tube assembly
12	NOF-1.000-02-042	Weight to 1in bottom up nozzle
14	M1-35462829	Two-Piece Clamp on Shaft Collar; 0.8750 in
16	MCM-9464K31	O-Ring Viton Dash number 210, ID: 0.750", OD: 1.000"

Item	Part No.	Part Name
18	NOF-1.000-01-014E-01-V16	Return tube assembly
20	NOF-1.000-01-017	Nozzle spacer 1.000in
22	NOF-1.000-01-020	Nozzle spacer 0.375in
24	NOF-1.000-01-022	Nozzle spacer 0.125in
26	NOF-1.000-01-023	1.000 nozzle bottom washer
28	NOF-1.000-01-024	1.000 nozzle fill pressure rubber
30	M1-75748889	O-Ring, Dash Number 208, ID 0.625 in, OD 0.875 in
32	NOF-1.000-01-026	Nozzle tip
