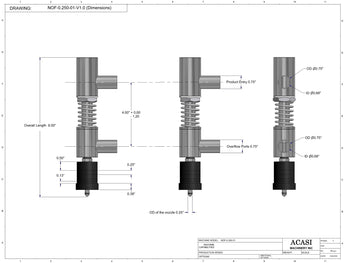

Automatic inline Pressure Overflow Nozzle 0.250in by Acasi Machinery Inc.

$ 341.00

0.250in | 0.375in | 0.500in | 0.625in | 0.750in | 1.000in | 1.250in

Item	Part No.	Part Name
2	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
4	NOF-COM-01-004E	Nozzle feed
6	NOF-COM-01-006	Teflon washer
8	NOF-0.250-01-012E-V20-B	Fill tube assembly
10	MCM-9263K511	Viton O-Ring, 1 mm wide, 3 mm ID
12	JON-C850X068SSX2.00	Compression spring, wire 0.068, OD 0.850in, length 2.0in
14	NOF-COM-01-008	Stainless steel washer
16	M1-09266149	O-Ring Viton Dash number 114, ID: 5/8", OD: 13/16"

Item	Part No.	Part Name
18	NOF-COM-01-010	O-Ring base washer
20	NOF-0.250-01-014E	Return tube assembly
22	M1-09265125	Viton O-Ring PR-012
24	NOF-0.250-01-016E-V20-B	Return tube
26	NOF-0.250-01-018	Separator 0.50in, Tip 0.25in
28	NOF-0.250-01-020	Separator 0.25in, Tip 0.25in
30	NOF-0.250-01-022	Separator 0.13in, Tip 0.25in
32	NOF-0.250-01-024	Rubber filing pressure
34	ORINGW-M1X4	O-ring Viton M1X4
36	NOF-0.250-01-026-V20	Nozzle tip
