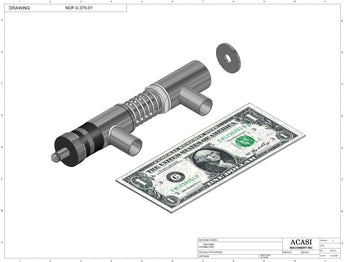

Pressure Overflow Nozzle 0.375in

$ 290.00



PRESSURE OVERFLOW STANDARD NOZZLE
Sizes availables:

0.250in | 0.375in | 0.500in | 0.625in | 0.750in | 1.000in | 1.250in

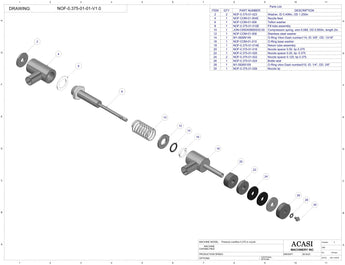

Item Part No. Part Name Price
2 NOF-0.375-01-023

Washer, ID 0.406in, OD 1.250in

4 NOF-COM-01-004E

Nozzle feed...............

6 NOF-COM-01-006 Teflon washer
8 NOF-0.375-01-012E Fill tube assembly
10 JON-C850X068SSX2.00 Compression spring, wire 0.068, OD 0.850in, length 2in
12 NOF-COM-01-008 Stainless steel washer
14 M1-09266149 O-Ring Viton Dash number 114, ID: 5/8", OD: 13/16"
16 NOF-COM-01-010 O-Ring base washer
Item Part No. Part Name Price
18

NOF-0.375-01-014E

Return tube assembly

20 NOF-0.375-01-018 Nozzle spacer 0.50in, Tip 0.375in
22 NOF-0.375-01-020 Nozzle spacer 0.25in, Tio 0.375in
24 NOF-0.375-01-022 Nozzle spacer 0.125in, Tip 0.375in
26 NOF-0.375-01-024 Rubber filing pressure
28 M1-09265109 O-Ring Viton Dash number 010, ID: 1/4", OD: 3/8"
30 NOF-0.375-01-026 Nozzle tip
