Pressure Overflow Sanitary Nozzle 0.750in
Price:
$ 490.00
$ 490.00 USD
/
PRESSURE OVERFLOW SANITARY NOZZLE
Sizes availables:
0.375in | 0.500in | 0.625in | 0.750in | 1.000in

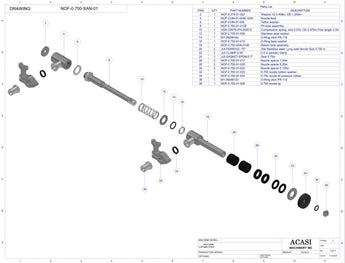

| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | NOF-0.375-01-023 | Washer, ID 0.406in, OD 1.250in |  |
| 4 | NOF-COM-01-004E-SAN | Nozzle feed | |
| 6 | NOF-COM-01-006 | Teflon washer | |
| 8 | NOF-0.750-01-012E | Fill tube assembly | |
| 10 | ASS-C0975-074-2500-S | Compression spring, wire 0.074, OD 0.975in Free length 2.5in | |
| 12 | NOF-0.750-01-008 |
Stainless steel washer |
|
| 14 | M1-09266164 | O-Ring viton PR-116 | |
| 16 | NOF-0.750-01-010 | O-Ring base washer | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 18 | NOF-0.750-SAN-014E | Return tube assembly | |
| 20 | JUI-FERRULLE-.75" | Long Weld Ferrule Size 0.75 in | |
| 22 | JUI-CLAMP-0.50 | 0.50 in Sanitary Clamp | |
| 24 | JUI-GASKET-EPDM-0.75" | Seal 0.75in | |
| 26 | NOF-0.750-01-017 |
Nozzle spacer 1in |
|
| 28 | NOF-0.750-01-020 | Nozzle spacer 0.25in | |
| 30 | NOF-0.750-01-022 | Nozzle spacer 0.125in | |
| 32 | NOF-0.750-01-023 | 0.750 nozzle bottom washer |
|
| 34 | NOF-0.750-01-024 | 0.750 nozzle fill pressure rubber | |
| 36 | M1-09266123 |
O-Ring viton PR-112 |
|
| 38 | NOF-0.750-01-026 | 0.750 nozzle tip | |
