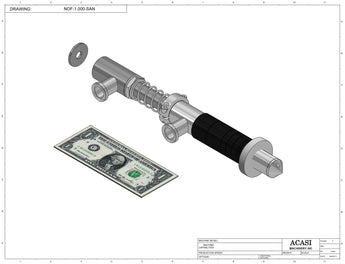

Pressure Overflow Sanitary Nozzle 1.000in

$ 725.00

0.375in | 0.500in | 0.625in | 0.750in | 1.000in

Item	Part No.	Part Name
2	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
4	NOF-COM-01-004E-SAN	Nozzle feed
6	NOF-COM-01-006	Teflon washer
8	NOF-1.000-01-012E-01 V16	Fill tube assembly
10	ASS-C1100-085-3000-S	Compression spring, wire 0.085, OD 1.100in length 3in
12	M1-35462829	Two-Piece Clamp on Shaft Collar; 0.8750 in
14	MCM-9464K31	O-Ring Viton Dash number 210, ID: 0.750", OD: 1.000"

Item	Part No.	Part Name
16	NOF-1.000-01-014E-SAN	Return tube assembly
18	NOF-1.000-01-017	Nozzle spacer 1.000in
20	NOF-1.000-01-020	Nozzle spacer 0.375in
22	NOF-1.000-01-022	Nozzle spacer 0.125in
24	NOF-1.000-01-023	1.000 nozzle bottom washer
26	NOF-1.000-01-024	1.000 nozzle fill pressure rubber
28	M1-75748889	O-Ring, Dash Number 208, ID 0.625 in, OD 0.875 in
30	NOF-1.000-01-026	Nozzle tip
