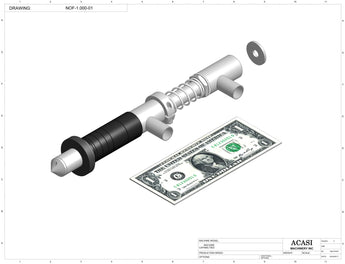

Automatic inline pressure overflow bottle filler machine, low viscosity, Assy NOF-1.000-01-01-V1.0, by Acasi Machinery Inc.

$ 650.00

0.250in | 0.375in | 0.500in | 0.625in | 0.750in | 1.000in | 1.250in

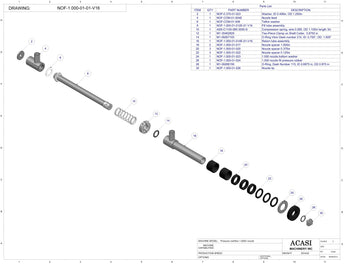

Item	Part No.	Part Name
2	NOF-0.375-01-023	Washer, ID 0.406in, OD 1.250in
4	NOF-COM-01-004E	Nozzle feed...............
6	NOF-COM-01-006	Teflon washer
8	NOF-1.000-01-012E-01 V16	Fill tube assembly
10	ASS-C1100-085-3000-S	Compression spring, wire 0.085, OD 1.100in lenght 3in
12	M1-35462829	Two-Piece Clamp-on Shaft Collar; ID: 0.8750 in
14	M1-09267105	Oring Viton Dash number 210, ID:0,750", OD:1.000"

Item	Part No.	Part Name
16	NOF-1.000-01-014E-01-V16	Return Tube Assembly
18	NOF-1.000-01-017	Nozzle Spacer 1.000in
20	NOF-1.000-01-020	Nozzle Spacer 0.375in
22	NOF-1.000-01-022	Nozzle Spacer 0.125in
24	NOF-1.000-01-023	1.000 Nozzle bottom washer
26	NOF-1.000-01-024	1.000 Nozzle Fill Pressure rubber
28	M1-09266156	O-Ring, Dash Number 115, ID 0.6875 in, OD 0.875 in
30	NOF-1.000-01-026	Nozzle tip
