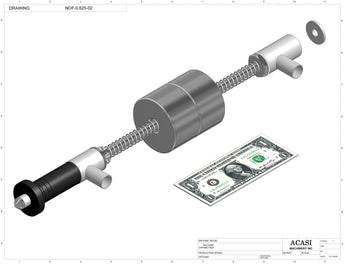

Bottom Up Nozzle 0.625in

$ 480.00



PRESSURE OVERFLOW BOTTOM UP NOZZLE
Sizes availables:
0.375in | 0.500in | 0.625in | 0.750in
Item Part No. Part Name Price
2 NOF-0.375-01-023

Washer, ID 0.406in, OD 1.250in

4 NOF-COM-01-004E

Nozzle feed

6 NOF-COM-01-006 Teflon washer
8 NOF-0.625-02-012E Fill tube assembly
10 JON-C650X062SSX11

Compression spring, Wire size: 0.062, OD: 0.65 in, Free lenghy: 11 in

12 NOF-0.625-02-007 Weight 0.625
14 M1-35462761 Shaft collar 0.438 in ID, 0.9375 in OD
16 NOF-0.625-02-008 Washer, ID 0.500in, OD 1.250in

Item Part No. Part Name Price
18 RIN-6226-11

U cup 0.438in shaft, 0.938in housing

20 NOF-0.625-02-014E

Return tube weldment

22

NOF-0.625-01-017

Nozzle spacer 1in
24 NOF-0.625-01-020 Nozzle spacer 0.25 in
26 NOF-0.625-01-022 Nozlle spacer 0.125 in
28 NOF-0.625-01-023 0.625 nozzle bottom washer
30 NOF-0.625-01-024 0.625 nozzle fill pressure rubber
32 M1-02050292 O-Ring, Dash Numer 109, ID 0.313 in, OD 0.500 in
34 NOF-0.625-01-026 Nozzle tip
