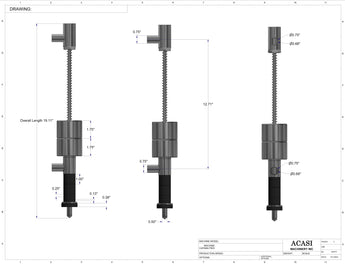

Bottom Up Nozzle 0.500in

$ 510.00



PRESSURE OVERFLOW BOTTOM UP NOZZLE
Sizes availables:
 0.375in | 0.500in | 0.625in | 0.750in
Item Part No. Part Name Price
2 NOF-0.375-01-023

Washer, ID 0.406in, OD 1.250in

4 NOF-COM-01-004E

Nozzle feed

6 NOF-COM-01-006 Teflon washer
8 JON-723 Compression spring,wire 0.054,OD 0.500in
10 NOF-0.500-03-012E Fill tube assembly
12 NOF-0.500-02-007 0.500 nozzle weight
14 M1-35462753 Split shaft collar 0.375 in
16 NOF-0.500-03-008 Washer,ID 0.500in, OD 1.250in

Item Part No. Part Name Price
18 M1-02050805

O-Ring Viton Dash Number 203, ID:5/16", OD: 9/16"

20 NOF-0.500-03-014E

Liquid returning 0.500 assy

22

NOF-0.500-01-017

Nozzle spacer 1in
24 NOF-0.500-01-020 Nozzle spacer 0.25in
26 NOF-0.500-01-022 Nozzle spacer 0.125in
28 NOF-0.500-01-023 0.500 nozzle bottom washer
30 NOF-0.500-01-024 0.500 nozzle fill pressure rubber
32 M1-09265117 Oring viton PR-011-VI
34 NOF-0.500-01-026 0.500 nozzle tip
