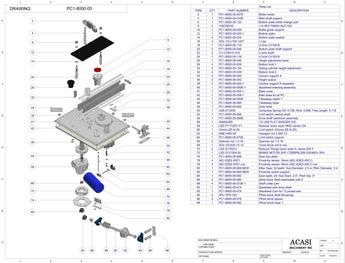

Chuck Bottle Capper Model PC1-JAW-VIB | Starwheel Cam


STRUCTURE ASSEMBLY  |  PANEL CONTROL  |  TURRET SYSTEM

CAPPING HEAD MOVEMENT  |  CAPPING HEAD  |  CAP PICKUP ARM

STARWHEEL CAM | CAP CHUTE SYSTEM | BOTTLES STARWHEEL

VIBRATORY CAP FEEDER

Item Part No. Part Name Price
2 PC1-8000-05-007E
Bottle holder
4 PC1-8000-05-012E Main shaft support
6 PC1-8000-05-122 Bottom plate bottle change part
8 100CNFHS 1-8 HEX FINISH NUT S/S
10 PC1-8000-05-056 Bottle guide support
12 PC1-8000-05-030-1 Bottom plate
14 PC1-8000-05-034 Bottom plate washer
16 SOL-VG-J100-125T J Leg
Item Part No. Part Name Price
18 PC1-8000-05-116
U front CV160-B
20 PC1-8000-05-048 Bottom plate shaft support
22 CV-COM-01-010 U joint shaft
24 PC1-8000-05-118 U front CV160-B
26 PC1-8000-05-046 Height adjustment base
28 PC1-8000-05-036 Bottom hold 1
30 PC1-8000-05-124 Gating cylinder height adjustment
32 PC1-8000-05-038 Bottom hold 2
34 PC1-8000-05-040 Column support A
36 PC1-8000-05-042 Height spacer
38 PC1-8000-05-044-1 Column support A separator
Item Part No. Part Name Price
40 PC1-8000-05-050E-1
Starwheel indexing assembly
41 PC1-8000-05-054-1 Base cover
42 PC1-8000-05-058-1 Main base for all PC
44 PC1-8000-05-052E Takeaway option 1
46 PC1-8000-05-084 Takeaway base
48 PC1-8000-05-062 Drain tube
50 ASS-D13030 Compress Spring OD: 0.728, Wire: 0.098, Free Length: 5.118
52 PC1-8000-05-066 Limit switch vertical shaft
54 PC1-8000-05-060E Drive shaft weldment assembly
56 50NWUSS 1/2 USS FLAT WASHER S/S
Item Part No. Part Name Price
58 LEE-P7172001.F1
Reducer bravo style HMQ, series 534
60 Omron-ZE-N-2S Limit switch
62 AME-HNX-08 Hexagon nut 0.500-13
64 PC1-8000-05-070E Limit switch support
66 Spanner nut 1.5-16 Spanner nut 1.5-16
68 SOL-VG-620-12-12 Cross block rod to rod
70 LEE-G175212 Reducer Flange bravo style H, series 534 F
72 LEE-G121054.00 BRAKE MOTOR 2HP,1725RPM,208-230/460V-3PH
74 PC1-8000-05-068 Gear box plate
76 AEL-E2E2-X5C1 Proximity sensor 18mm
Item Part No. Part Name Price
78 AEL-E2E2-X5C1-nut
Proximity sensor 18mm (AEL-E2E2-X5C1) nut
80 PC1-8000-05-064-NEW Miter Gear; 24 teeth; Hub Diameter: 2.5 in; Pitch Diameter: 3 in
82 PC1-8000-05-065-NEW Proximity switch support
84 PC1-8000-05-063 Gear teeth: 24; Hub Diam: 2.5"; Pitch Dia: 3"
86 PC1-8000-05-080 Pillow block 2bolt sealmaster part 2
88 PC1-8000-05-072E-1 Shaft collar cam
90 PC1-8000-05-074 Starwheel cam drive shaft
92 PC1-8000-05-076 Starwheel Cam for 12 pocket star
94 APL-VPS-120 Pillow block 2bolt Browning
96 PC1-8000-05-078 Pillow block spacer
98 PC1-8000-05-082 Pillow block base 1
