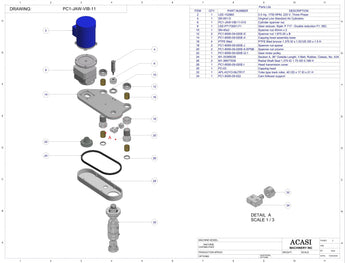

Chuck Bottle Capper Model PC1-JAW-VIB | Capping Head Movement


STRUCTURE ASSEMBLY  |  PANEL CONTROL  |  TURRET SYSTEM

CAPPING HEAD MOVEMENT  |  CAPPING HEAD  |  CAP PICKUP ARM

STARWHEEL CAM  |  CAP CHUTE SYSTEM | BOTTLES STARWHEEL

VIBRATORY CAP FEEDER

Item Part No. Part Name Price
2 LEE-102860
0.5 Hp, 1750 RPM, 220 V, Three Phase
4 SR-091-D Original Line Standard Air Cylinders
6 PC1-JAW-VIB-11-010 Cylinder spanner nut
8 LEE-P7172001.F1 Gear reducer, Style: P 717 - Double reduction F1, 56C
10 SN-40x2 Spanner nut 40mm x 2
12 PC1-8000-09-020E-D Spanner nut 1.875-20 x B
14 PC1-8000-09-020E-A Capping head assembly base
16 PTFE filled PTFE filled bronze 1.375 ID x 1.53125 OD x 1.5 H
Item Part No. Part Name Price
18 PC1-8000-09-020E-J Spanner nut spacer
20 PC1-8000-09-020E-K-1 Spanner nut column
22 PC1-8000-09-020E-G-1 Gear motor pulley
24 M1-35385038 Section A, 36″ Outside Length, V-Belt, Rubber, Classic, No. A34
26 M1-36677938 Radial Shaft Seal 1.375 ID 1.75 OD 0.188 H
28 PC1-8000-09-020E-I
Head transmision cover
30 PC-03 Capping head
32 APL-KOYO-NUTR17 Yoke type track roller, 40 OD x 17 ID x 21 H
34 PC1-8000-09-022 Cam follower support
