Chuck Bottle Capper Model PC1-JAW-VIB | Turret System

Request a Quote

STRUCTURE ASSEMBLY | PANEL CONTROL | TURRET SYSTEM

CAPPING HEAD MOVEMENT | CAPPING HEAD | CAP PICKUP ARM

STARWHEEL CAM | CAP CHUTE SYSTEM | BOTTLES STARWHEEL

VIBRATORY CAP FEEDER

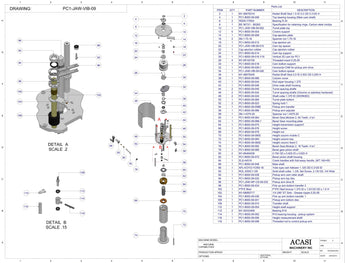

Item	Part No.	Part Name	Price
2	M1-36678316	Radial Shaft Seal 1.5 ID 2.0 OD 0.3125 H
4	PC1-8000-09-006	Top bearing housing (Main cam shaft)
6	PEER-77R24	Bearing R 24
8	BS 3673/1 - B0262	Specification for retaining rings
10	PC1-JAW-VIB-09-002	Turret plate top
12	PC1-8000-09-004	Covers support
14	PC1-8000-09-008	Cap ejection plate
16	SN-1.75-16	Spanner nut 1.75-16

Item	Part No.	Part Name	Price
18	PC1-8000-09-012	Cap ejection pin
20	PC1-JAW-VIB-09-010	Cam top spacer
22	Cap ejection rubber	Cap ejection rubber
24	PC1-8000-09-014	Cam top support
26	PC1-8000-09-016 V19	Vertical cam for PC1
28	M1-09142159	Threaded insert 0.25-20
30	PC1-8000-09-018	Cam bottom support
32	PC1-8000-09-028-1	Horizontal CAM for pickup arm drive
34	PC1-JAW-VIB-09-026	Cam bottom spacer
36	M1-36679249	Radial Shaft Seal 2.0 ID 2.502 OD 0.250 H
38	PC1-8000-09-086	Turret cover

Item	Part No.	Part Name	Price
40	PC1-8000-09-044	Rod wiper housing 1.375
42	PC1-8000-09-046	Drive male shaft housing
44	PC1-8000-09-040	Turret spacing shafts
46	PC1-8000-09-042	Turret spacing shafts (Chrome or stainless hardened)
48	PC1-8000-09-024	Shaft collar 1.375 ID (WORKED)
50	PC1-8000-09-060	Turret plate bottom
52	PC1-8000-09-023	Spring hold 1
54	PC1-8000-09-058E	Pickup arm transfer
56	PC1-8000-09-088	Pickup arm adjuster
58	SN-1.4375-20	Spanner nut 1.4375-20

Item	Part No.	Part Name	Price
60	PC1-8000-09-064	Bevel Gear, Module 2, 64 Teeth, 4 to 1
62	PC1-8000-09-068-1	Bevel Gear mounting plate
64	PC1-8000-09-070	Height transmision support 1
66	PC1-8000-09-076	Height screw
68	PC1-8000-09-078	Height nut
70	PC1-8000-09-080E	Height column mobile C
72	PC1-8000-09-084	Height column key
74	PC1-8000-09-082E	Height column fixed C
76	PC1-8000-09-062	Bevel Gear, Module 2, 16 Teeth, 4 to 1
78	PC1-8000-09-066	Bevel gear pinion shaft

Item	Part No.	Part Name	Price
80	M1-06484026	0.750 OD x 0.625 ID x 0.625 H
82	PC1-8000-09-072	Bevel pinion shaft housing
84	ELS-44516	Crank handles with fold-away handle MT.160+IR(0)
86	PC1-8000-09-048	Male shaft
88	APL-KOYO-YCRS-18	Yoke type cam follower 1.125 OD, 0.3125 ID
90	ROL-SSSC1-3/8	Solid shaft collar, 1-3/8, set screw, 2-1/8 OD, 3/4 wide
92	PC1-8000-09-038	Pickup arm cam roller shaft
94	PC1-8000-09-030	Pickup arm top disc
96	PC1-8000-09-032	Pickup arm drive B
98	PC1-8000-09-034	Pickup arm bottom transfer 3

Item	Part No.	Part Name	Price
100	PTFE filled	PTFE filled bronze
102	M1-08060717	1/4 UNF ST Zerk - Grease nipple 0.25-28
104	PC1-8000-09-036	Pickup arm bottom transfer 1
106	PC1-8000-09-041	Pickup arm bottom disc
108	PC1-8000-09-074	Transfer shaft
110	PC1-8000-09-054	Height shaft support
112	APL-R10ZZ	Bearing R10
114	PC1-8000-09-092	R10 bearing housing - pickup system
116	PC1-8000-09-056	Height measurement shaft
118	PC1-8000-09-098	Threaded rod to control pickup arm
