T Cork Push Capper Model-PC1-8000 | PC Structure Assembly

Request a Quote

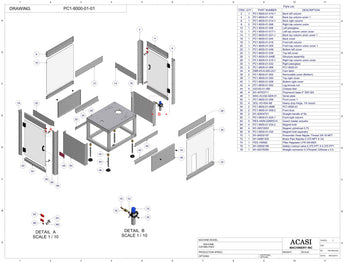

PC STRUCTURE ASSEMBLY | PC PANEL CONTROL

PC TURRET AND CAMS SYSTEM | CAP CHUTE SYSTEM

Item	Part No.	Part Name	Price
2	PC1-8000-01-010-1	Back left column
4	PC1-8000-01-100	Back top column union 1
6	PC1-8000-01-014-1	Back right colum
8	PC1-8000-01-098	Right top column union
10	PC1-8000-01-006	Left plexiglass
12	PC1-8000-01-017-1	Left top column union cover
14	PC1-8000-01-021-1	Back top column union cover 1
16	PC1-8000-01-044	Back cover

Item	Part No.	Part Name	Price
18	PC1-8000-01-016	Front left column
20	PC1-8000-01-005	Front top column union cover 1
22	PC1-8000-01-048	Bottom left cover
24	PC1-8000-01-036	Top left cover
26	PC1-8000-01-046E	Structure assembly
28	PC1-8000-01-015-1	Right top column union cover
30	PC1-8000-01-032	Right plexiglass
32	PC1-8000-01-068	PC1-8000-01
34	DBR-E5-6-005-UU1	Cam latch
36	PC1-8000-01-054	Removable cover (Bottom)
38	PC1-8000-01-050	Top right cover

Item	Part No.	Part Name	Price
40	PC1-8000-01-058	Bottom right cover
42	PC1-8000-01-052	Leg bronze nut
44	GI3100-01-090	Chassis feet
46	M1-45763711	Polymount base 4" SW QIA
48	MAC-ACASI-SER-01	Serial plate
50	PC1-8000-01-056	Front cover 1
52	SOL-VG-634-AB	Heavy duty hinge, 1/4 mount
54	PC1-8000-01-066E	PC1-8000-01

Item	Part No.	Part Name	Price
56	PC1-8000-01-008-2	Front door
58	M1-82504721	Straight handle of 5in
60	PC1-8000-01-024-1	Front right column
62	REX-440N-Z2NRS1A	Guard master actuator
64	PC1-8000-01-034-2	Magnet hold
66	M1-06572903	Magnet cylindrical 0.75
68	PC1-8000-01-035	Magnet hold separator
70	M1-84930197	Pneumatic Hose Nipple; Thread 3/8-18 NPT
72	M1-04881405	Brass Pipe Nipples 0.375 NPT X 3/4
74	FES-159582	Filter Regulator LFR-3/8-MIDI
76	M1-00092189	Safety Lockout valve 0.375 FPT X 0.375 FPT
78	M1-62378385	Straight connector 0.375 NPT X 0.125 hose X 0.5
