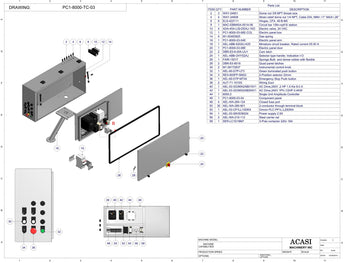

T Cork Push Capper Model-PC1-8000 | PC Panel Control

Request a Quote

PC STRUCTURE ASSEMBLY | PC PANEL CONTROL

PC TURRET AND CAMS SYSTEM | CAP CHUTE SYSTEM

Item	Part No.	Part Name	Price
2	WAY-24601	Dome nut 3/8 NPT thread size
4	WAY-24608	Strain relief dome nut 1/4 NPT, Cable DIA, MIN=.11" MAX=.26"
6	ELS-422111	Hinges, CFA, 49 B-M5
8	MAC-EBM45A-001A-06	Circuit bar 1/8in-nptf 6/ station
10	ADA-45A-L00-DDAJ-1KD	Electric valve, 24 VAC
12	PC1-8000-03-06E-COL	Electric panel box
14	M1-00483925	Gas spring
16	PC1-8000-03-04E	Electric panel arm

Item	Part No.	Part Name	Price
18	AEL-ABB-S202U-K25	Miniature circuit breaker, Rated current 25.00 A
20	PC1-8000-03-08E	Electric panel door
22	DBR-E5-6-005-UU1	Cam latch
24	AEL-ABB-OHYS2AJ	Selector type handle. Indication I-O
26	FAIR-15017	Sponge Bulb and dense rubber with flexible
28	DBR-E5-8018	Quad panel latches
30	M1-06172837	Instrumental control knob
32	AEL-60-D7P-LF3	Green iluminated push button
34	REX-800FP-SM22	2-Position selector 22mm
36	AEL-60-D7P-MT44	Emergency Stop Push button
38	AUT-T1-1010G	Wiring Duct

Item	Part No.	Part Name	Price
40	AEL-53-3G3MX2AB015V1	AC Drive, 240V, 2 HP, 1.5 Kw 8.0 A
42	AEL-53-3G3MX2AB004V1	AC Drive, 240V 1HP, 1/2 HP 0.4KW
44	6000.2	Single Unit Amplitude Controller
46	PC1-8000-03-04	Component panel
48	AEL-WA-284-124	Closed fuse port
50	AEL-WA-280-901	2-conductor through terminal block
52	AEL-53-CP1LL10DRA	Omron PLC PP1L-L20DRA
54	AEL-53-S8VE06024	Power supply 2.5A
56	AEL-WA-210-112	Steel carrier rail
58	SER-LC1D18M7	3-Pole contactor 220v 18A
