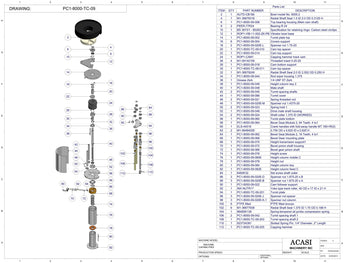

T Cork Push Capper Model-PC1-8000 | PC Turret and Cams System

Request a Quote

PC STRUCTURE ASSEMBLY | PC PANEL CONTROL

PC TURRET AND CAMS SYSTEM | CAP CHUTE SYSTEM

Item	Part No.	Part Name	Price
2	AUTD-CB168	Bowl model No. 6000.2
4	M1-36678316	Radial Shaft Seal 1.5 ID 2.0 OD 0.3125 H
6	PC1-8000-09-006	Top bearing housing (Main cam shaft)
8	PEER-77R24	Bearing R 24
10	BS 3673/1 - B0262	Specification for retaining rings
12	ROP1-VIB-11-002-ZK-PB	Vibrator bowl base
14	PC1-8000-09-002	Turret plate top
16	PC1-8000-09-004	Covers support

Item	Part No.	Part Name	Price
18	PC1-8000-09-020E-L	Spanner nut 1.75-20
20	PC1-8000-TC-09-010	Cam top spacer
22	PC1-8000-09-014	Cam top support
24	ROP1-CAM1	Capping hammer track cam
26	M1-09142159	Threaded insert 0.25-20
28	PC1-8000-09-018	Cam bottom support
30	PC1-8000-TC-09-011	Cam top spacer
32	M1-36679249	Radial Shaft Seal 2.0 ID 2.502 OD 0.250 H
34	PC1-8000-09-044	Rod wiper housing 1.375
36	Grese Zerk	1/4 UNF ST Zerk
38	PC1-8000-09-049	Height column key 2

Item	Part No.	Part Name	Price
40	PC1-8000-09-048	Male shaft
42	PC1-8000-09-040	Turret spacing shafts
44	PC1-8000-09-086	Turret cover
46	PC1-8000-09-021	Spring threaded rod
48	PC1-8000-09-020E-M	Spanner nut 1.4375-20
50	PC1-8000-09-023	Spring hold 1
52	PC1-8000-09-046	Drive male shaft housing
54	PC1-8000-09-024	Shaft collar 1.375 ID (WORKED)
56	PC1-8000-09-060	Turret plate bottom
58	PC1-8000-09-064	Bevel Gear, Module 2, 64 Teeth, 4 to 1

Item	Part No.	Part Name	Price
60	ELS-44516	Crank handles with fold-away handle MT.160+IR(0)
62	M1-06484026	0.750 OD x 0.625 ID x 0.625 H
64	PC1-8000-09-062	Bevel Gear, Module 2, 16 Teeth, 4 to 1
66	PC1-8000-09-068	Bevel Gear, mounting plate
68	PC1-8000-09-070	Height transmision support 1
70	PC1-8000-09-072	Bevel pinion shaft housing
72	PC1-8000-09-066	Bevel gear pinion shaft
74	PC1-8000-09-076	Height screw
76	PC1-8000-09-080E	Height column mobile C
78	PC1-8000-09-078	Height nut

Item	Part No.	Part Name	Price
80	PC1-8000-09-084	Height column key
82	PC1-8000-09-082E	Height column fixed C
84	6462K32	Set screw shaft collar
86	PC1-8000-09-020E-D	Spanner nut 1.875-20 x B
88	PC1-8000-09-020E-B	Spanner nut 1.875-20 x A
90	PC1-8000-09-022	Cam follower support
92	INA NUTR17	Yoke type track roller, 40 OD x 17 ID x 21 H
94	PC1-8000-TC-09-201	Turret plate
96	PC1-8000-09-020E-J	Spanner nut spacer
98	PC1-8000-09-020E-K-1	Spanner nut column

Item	Part No.	Part Name	Price
100	PTFE filled	PTFE filled bronze
102	M1-36677938	Radial Shaft Seal 1.375 ID 1.75 OD 0.188 H
104	96485K138	Spring-tempered stl jumbo compression spring
106	PC1-8000-09-042	Turret spacing shaft 1
108	PC1-8000-TC-09-203	Turret spacing shaft 2
110	92373A381	Slotted Spring Pin, 1/4" Diameter, 2" Length
112	PC1-8000-TC-09-205	Capping hammer
