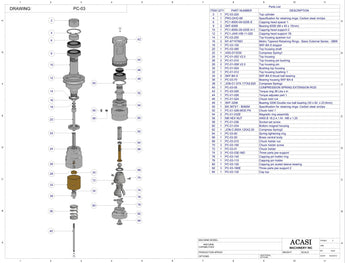

Chuck Bottle Capper Model PC1-JAW-VIB | Capping Head

Request a Quote

STRUCTURE ASSEMBLY | PANEL CONTROL | TURRET SYSTEM

CAPPING HEAD MOVEMENT | CAPPING HEAD | CAP PICKUP ARM

STARWHEEL CAM | CAP CHUTE SYSTEM | BOTTLES STARWHEEL

VIBRATORY CAP FEEDER

Item	Part No.	Part Name	Price
2	PC-03-220	Top cylinder
4	PRO-DHO-68	Specification for retaining rings- Carbon steel circlips
6	PC1-8000-09-020E-E	Capping head spacer 1
8	SKF-6008	Bearing 6008 (68 x 40 x 15mm)
10	PC1-8000-09-020E-H-1	Capping head support 2
12	PC1-JAW-VIB-11-020	Capping head support 1B
14	PC-03-200	Top housing spanner nut
16	M1-67157883	Metric Tapered Retaining Rings - Basic External Series - 3BMI

Item	Part No.	Part Name	Price
18	PC-03-100	SKF-BA 8 stopper
20	PC-03-090	Top housing shaft
22	ASS-D13030	Compress Spring1
24	PC-01-002 V2.0	Top housing
26	PC-01-010	Top housing pin bushing
28	PC-01-008 V2.0	Top housing pin
30	PC-01-004	Bushing top housing
32	PC-01-012	Top housing bushing 1
34	SKF-BA 8	SKF-BA 8 thrust ball bearing
36	PC-03-70	Bearing housing SKF-BA 8
38	JON-C1.57X.177X2.625	Compress Spring

Item	Part No.	Part Name	Price
40	PC-03-05	COMPRESSION SPRING EXTENSION ROD
42	PC-03-020	Torque ring 36 Lbs x in
44	PC-01-026	Torque adjuster part 1
46	PC-01-024	Chuck hold nut
48	SKF-3206	Bearing 3206 Double row ball bearing (30 x 62 x 23.8mm)
50	BS 3673/1 - B062M	Specification for retaining rings- Carbon steel circlips
52	PC-01-028-MOD PA	Chuck hold 1
54	PC-01-032E	Magnetic ring assembly
56	M8 HEX NUT	ANSI B 18.2.4.1 M - M8 x 1.25
58	PC-01-036	Socket set screw

Item	Part No.	Part Name	Price
60	PC-01-034	Bottom magnet housing
62	JON-C.850X.125X2.50	Compress Spring 2
64	PC-03-60	Spring tightening ring
66	PC-03-50	Brass central body
68	PC-03-210	Chuck holder nut
70	PC-03-190	Chuck holder screw
72	PC-03-01	Chuck holder
74	PC-03-03E-IND	Three parts jaw support
76	PC-03-140	Capping pin holder ring
78	PC-03-110	Capping pin holder
80	PC-03-120	Capping pin acetal sleeve bearing
82	PC-03-180E	Three parts jaw support 2
84	PC-03-130	Cap top
