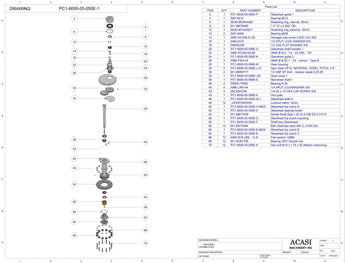

Chuck Bottle Capper - Model PC1-JAW-VIB Assy PC1-8000-05-050E-1
$ 0.00 USD
/
| Item | Part No. | Part Name | Price |
| 2 | PC1-8000-05-050E-P |
Starwheel guide 1 |
 |
| 4 | SKF-6012 | Bearing 6012 | |
| 6 | MCM-98394A560 | Retaining ring, internal, 95mm | |
| 8 | M1-36678480 | 1.5″ ID x 2.502″ OD | |
| 10 | MCM-90154A671 | Retaining ring, external, 30mm | |
| 12 | SKF-6008 | Bearing 6008 | |
| 14 | AME-HCX08-01.00 | Hexagon cap screw 0.500-13x1.000 | |
| 16 | 50NLOCS | 1/2 SPLIT LOCK WASHER S/S | |
| Item | Part No. | Part Name | Price |
| 18 | 50NWUSS |
1/2 USS FLAT WASHER S/S |
|
| 20 | PC1-8000-05-050E-O | Starwheel shaft transfer 1 | |
| 22 | AME-HCX04-00.88 | ANSI B18.3 - 1/4 - 20 UNC - 7/8 | |
| 24 | PC1-8000-05-050E-N | Starwheel guide 2 | |
| 26 | AME-FWX-04 | ANSI B18.22.1 - 1/4 - narrow - Type B | |
| 28 | PC1-8000-05-050E-M | Gear housing | |
| 30 | PC1-8000-05-050E-L-01 | Spur Gear DP12, MATERIAL: STEEL, PITCH: 4.5" | |
| 32 | M1-08060717 | 1/4 UNF ST Zerk - Grease nipple 0.25-28 | |
| Item | Part No. | Part Name | Price |
| 34 | PC1-8000-05-050E-J-B |
Gear cover 1 |
|
| 36 | PC1-8000-05-050E-D | Starwheel shaft 1 | |
| 38 | PEER-77R20 | Bearing R 20 | |
| 40 | AME-LWX-04 | 1/4 SPLIT LOCKWASHER S/S | |
| 42 | 25C50HCSS | 1/4-20 x 1/2 HEX CAP SCREW S/S | |
| 44 | PC1-8000-05-050E-K | Arm grab | |
| 46 | PC1-8000-05-050E-IE-1 | Starwheel shaft 2 | |
| 48 | .12CNFHS/D934 | Locknut metric 12mm | |
| Item | Part No. | Part Name | Price |
| 50 | PC1-8000-05-050E-H-NEW |
Starwheel trip clutch A |
|
| 52 | PC1-8000-05-050E-C | Starwheel bearing holder | |
| 54 | M1-36677938 | Radial Shaft Seal 1.25 ID 2.438 OD 0.313 H | |
| 56 | PC1-8000-05-050E-G | Starwheel trip clutch busching | |
| 58 | PC1-8000-05-050E-F | Shaft key (Starwheel) | |
| 60 | M1-00073494 | Ball, Stainless steel 440 C, 0.625 Dia | |
| 62 | PC1-8000-05-050E-E-NEW | Starwheel trip clutch B | |
| 64 | PC1-8000-05-050E-B | Starwheel trip clutch C | |
| Item | Part No. | Part Name | Price |
| 66 | ANSI B18.22M - 12 N |
Flat washer 12MM |
|
| 68 | M1-35381706 | Bearing 3201 Double row | |
| 70 | PC1-8000-05-050E-A | Hex bolt M12 x 1.75 x 50 (Needs machining) | |
