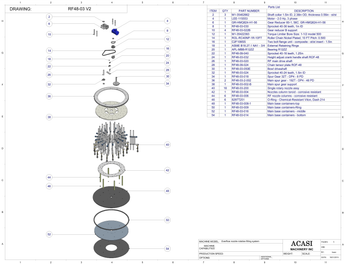

Highly Corrosive Product Rotary Pressure Overflow Filler RF48-01|Rotary Nozzle System

Request a Quote

TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item	Part No.	Part Name	Price
2	M1-35462662	Shaft Collar 1.5in ID, 2.38in OD, Thickness 0.56in-st/st
4	LEE-115553	Motor- 2.0 Hp, 3 Phase
6	GR-HMQ824-H1-56	Gear Reducer 60-1, 56C
8	RF48-03-030	Sprocket 40-36 Teeth, 1in ID
10	RF48-03-022B	Gear Reducer B Support
12	M1-35422393	Torque Limiter Bore Size: 1-1/2 Model 500
14	ROL-RC40NP-1R-10FT	Roller Chain Nickel Plated, 10 FT Pitch: 0.500
16	CF108SS	Two Bolt Flange Unit- Composite- st/st insert-1.5 in
18	ASME B18.27.1 NA1 - 3/4	Externals Retaining Rings
20	APL-MBB-R12ZZ	Bearing R12ZZ

Item	Part No.	Part Name	Price
22	RF48-09-040	Sprocket 40-16 Teeth, 1.25 in
24	RF48-03-032	Height Adjust Crank Handle Shaft ROF-48
26	RF48-03-020	RF Main Drive Shaft
28	RF48-09-024	Chain Tensor Plate ROF-48
30	RF48-03-050E	Bowl Drives Shaft
32	RF48-03-024	Sprocket 40-24 Teeth, 1.5in ID
34	RF48-03-018	Spur Gear 32T-DP4-8PD
36	RF48-03-2-002	Main Spur Gear-192T- DP4 -48PD
38	RF48-03-002-B	Main Spur Gear Support
40	RF48-03-200	Single Rotary Nozzle Assy

Item	Part No.	Part Name	Price
42	RF48-03-004	Nozzles Column Toroid- Corrosive Resistant
44	RF48-03-006	RF Nozzle Columns-Corrosive Resistant
46	MCM-8297T251	O-Ring- Chemical-Resistant Viton, Dash 214
48	RF48-03-008-1	Main Base Containers-Top
50	RF48-03-009	Main Base Containers-Ring
52	RF48-03-016	Main Base Containers-Middle
54	RF48-03-014	Main Base Containers-Bottom
