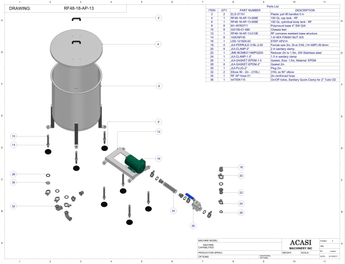

Rotary Pressure Overflow Filler RF48-18| Tank And Pump


TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item Part No. Part Name Price
2 ELS-37101 Plastic Pull Lift Handles 5in
4 RF48-18-AP-13-006E 100 GL Cap Tank- RF
6 RF48-18-AP-13-008E 100 GL Cylindrical Body Tank- RF
8
M1-45763711 Polymount Base 4" SW QIA
10
GI3100-01-090 Chassis Feet
12 RF48-18-AP-13-010E RF Corrosive Resistant Base Estructure
14 100CNFHS 1-8 HEX FINISH NUT S/S
16 LEE-121929.00 Motor 3 PH , 3HP, 3600RPM, 230/460 V
18 JUI-FERRULE-316L-2.00 Ferrule Size 2in, St-st 316L (14 Amp) 50.8mm
20 JUI-CLAMP-2"  2 in Sanitary Clamp
Item Part No. Part Name Price
22 JME-BCMB3114MPG200 Reducer 2in to 1.5in, 304 Stainless Steel
24
JUI-CLAMP-1.5" 1.5in Sanitary Clamp
26 JUI-GASKET-EPDM-1.5 Gasket, Size: 1.5in, Material: EPDM
28
JUI-GASKET-EPDM-2 Gasket 2in
30 JUI-PLUG-2" Plug 2in
32 JUI-ELBOW-316-2" 316L ss 90° Elbow
34 RF-AP Hose 01 2in Reinforced Hose
36 MCM-44755K115 On/Off Valve, Sanitary Quick-Clamp For 2" Tube OD
