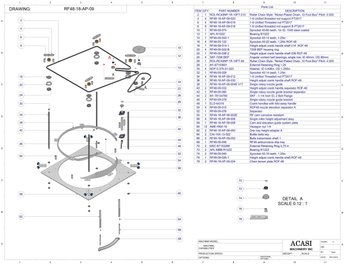

Rotary Pressure Overflow Filler RF48-18| Nozzle Cam System

Request a Quote

TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item	Part No.	Part Name	Price
2	ROL-RC40NP-1R-10FT-210	Roller Chain Style: "Nickel Plated Chain, 10 Foot Box" Pitch: 0.500
4	RF48-18-AP-09-020	1-8 Unified Threaded Rod Support PT2017
6	RF48-18-AP-09-016	1-8 Unified Threaded Nut PT2017
8	RF48-18-AP-09-018	1-8 Unified Threaded Rod Support B PT2017
10	RF48-09-074	Sprocket 40-14 Teeth,1in ID, 1045 Steel Coated
12	APL-R10ZZ	Bearing R10ZZ
14	RF48-09-042-1	Sprocket 40-14 Teeth, 1.25 in
16	RF48-05-122	Sprocket 40-22 Teeth, 1.25 in ROF-48
18	RF48-09-014-1	Height Adjust Crank Handle Shaft 014 ROF-48
20	RF48-09-022-B	7208 BEP Housing Ring

Item	Part No.	Part Name	Price
22	RF48-09-036-2	Height Adjust Crank Handle Shaft 036 ROF-48
24	SKF-7208 BEP	Angular Contact Ball Bearings, Single Row, ID 40mm , OD 80mm
26	ROL-RC40NP-1R-10FT-59	Roller Chain Style: "Nickel Plated Chain, 10 Foot Box" Pitch: 0.500
28	M1-67153601	External Retaining Ring 1,25
30	NOF-0.375-01-023	Washer, ID 0.406 in , OD 1.250 in
32	RF48-09-028	Sprocket 40-14 Teeth, 1.25 in
34	RF48-18-AP-09-012	1-8 Unified Threaded Rod PT2017
36	RF48-18-AP-09-030	Height Adjust Crank Handle Shaft ROF-48
38	RF48-18-AP-09-004E V17	Single Rotary Nozzle Guide
40	RF48-09-032	Height Adjust Crank Handle Separator ROF-48

Item	Part No.	Part Name	Price
42	RF48-09-080	Single Rotary Nozzle Guide Bracket Separator
44	M1-78134780	SKF-1 1/4 inch ID, 2 Bolt Flange
46	RF48-09-078	Single Rotary Nozzle Guide Bracket
48	ELS-44316	Crank Hanldles With Fold-Away Hanldle
50	RF48-09-010	ROF48 Nozzle Elevation Separator A
52	RF48-09-076	Separator
54	RF48-18-AP-09-002E	RF Cam Corrosive Resistant
56	RF48-18-AP-09-008	Single Roller Height Adjusment Assy
58	RF48-18-AP-09-006	Cam and Elevation Guide System Plate
60	AME-HNX-16	Hexagon Nut 1-8

Item	Part No.	Part Name	Price
62	RF48-18-AP-09-050	Drip Tray Height Adapter A
64	CAI-10X-13-022	Bottle Belts Key
66	RF48-18-AP-09-052	Belt Transmission Shaft 1
68	RF48-09-048	RF48 Anticorrosive Drip Tray
70	MSC-67153288	External Retaining Ring 0,75 in
72	APL-MBB-R12ZZ	Bearing R12ZZ
74	RF48-09-040	Sprocket 40-16 Teeth, 1.25 in
76	RF48-09-026-1	Height Adjust Crank Handle Shaft ROF-48
78	RF48-18-AP-09-024	Chain Tensor Plate ROF-48
