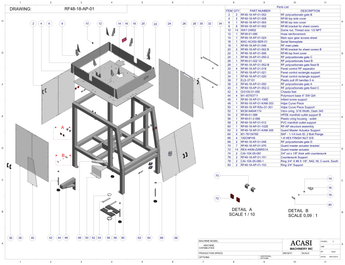

Rotary Pressure Overflow Filler RF48-18| Tube Structure

Request a Quote

TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item	Part No.	Part Name	Price
2	RF48-18-AP-01-052	RF Polycarbonate Gate B
4	RF48-18-AP-01-008	RF48 Top Side Cover
6	RF48-18-AP-01-004	RF48 Top Rear Cover
8	RF48-AP-01-002	RF48 Bracket For Sheet Covers
10	WAY-24602	Dome Nut, Thread Size: 1/2 NPT
12	RF48-01-090	Hose Reinforcement
14	RF48-18-AP-01-024	Main Spur Gear Access Sheet
16	MAC-ACASI-SER-01	Serial Nameplate
18	RF48-18-AP-01-046	RF Main Plate
20	RF48-18-AP-01-002 B	RF48 Bracket For Sheet Covers B

Item	Part No.	Part Name	Price
22	RF48-18-AP-01-006	RF48 Top Front Cover
24	RF48-18-AP-01-050-2	RF Polycarbonate Gate C
26	RF48-01-022 V2	RF Polycarbonate Fixed B
28	RF48-18-AP-01-052-B	FR Polycarbonate Gate Fixed B
30	RF48-18-AP-01-018	Panel Control RF Separator
32	RF48-18-AP-01-021	Panel Control Rectangle Support
34	RF48-18-AP-01-020	Panel Control Rectangle Support
36	ELS-37101	Plastic Pull Lift Handles 5 in
38	RF48-18-AP-01-050	RF Polycarbonate Gate A
40	RF48-18-AP-01-052-C	RF Polycarbonate Gate Fixed C

Item	Part No.	Part Name	Price
42	GI3100-0-090	Chassis Feet
44	M1-45763711	Polymount Base 4" SW QIA
46	RF48-18-AP-01-106E	Infeed Screw Support
48	RF48-18-AP-01-KAM-303	HDPE Curve Piece
50	RF48-18-XP-RSO-01-301	HDPE Curve Piece Support
52	MCM-9464K174	Viton Oring, 3/16 Width, Dash 345
54	RF48-01-088	HDPE Manifold Outlet Support B
56	RF48-01-2-098	Plastic Oring Housing- Outlet
58	RF48-18-AP-01-012	PVC Manifold Outlet Support
60	RF48-18-AP-01-102E	RF-AP Structure Assembly

Item	Part No.	Part Name	Price
62	RF48-18-AP-AP-01-KAM-305	Guard Master Actuator Support
64	M1-78134780	SKF-1-1/4 Inch ID, 2 Bolt Flange
66	100CNFS	1-8 Hex Finish Nut S/S
68	RF48-18-AP-01-048	RF Polycarbonate Gate D
70	RF48-18-AP-01-070	Guard Master Actuator Bracket
72	REX-440N-Z2NRS1A	Guard Master Actuator
74	CAI-10X-05-081	3/4" OD X 1/8" Thick With Countersunk
76	RF48-18-AP-01-151	Countersunk Support
78	CAI-10X-05-080-1	Ring 3/4" x #8 x 1/8", N42, NI, X-Sunk, South
80	RF48-18-AP-01-153	Ring 3/4" Support
