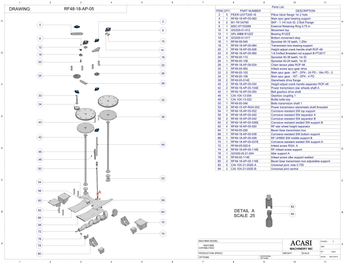

Rotary Pressure Overflow Filler RF48-18| Rotary Starwheels System

Request a Quote

TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item	Part No.	Part Name	Price
2	PEER-UCFT205-16	Pillow Block Flange 1in 2 Hole
4	RF48-18-AP-05-062	Main Spur Gear Bearing Support
6	M1-78134780	SKF-1 1/4 inch ID, 2 Bolt Flange
8	MSC-67153288	External Retaining Ring 0,75 in
10	GI3300-01-012	Movement Top
12	APL-MBB-R12ZZ	Bearing R12ZZ
14	GI3300-01-017	Bottom Movement Stop
16	RF48-09-040	Sprocket 40-16 Teeth, 1.25in
18	RF48-18-AP-05-064	Transmision Box Bearing Support
20	RF48-18-AP-05-026	Height Adjust Crank Handle Shaft ROF-48

Item	Part No.	Part Name	Price
22	RF48-18-AP-05-060	1-8 Unified Threaded Rod Support B PT2017
24	RF48-05-110	Sprocket 40-36 Teeth, 1in ID
26	RF48-05-108	Sprocket 40-24 Teeth, 1in ID
28	RF48-18-AP-09-024	Chain Tensor Plate ROF-48
30	RF48-05-062	Infeed Screw Spur Gear Drive
32	RF48-05-102	Main Spur Gear-64T-DP4-24PD-16in PD-2
34	RF48-05-106	Main Spur Gear-64T-DP4-4 PD
38	RF48-05-014E	Starwheels Drive Flange
40	RF48-18-AP-05-030	Height Adjust Crank Handle Separator ROF-48

Item	Part No.	Part Name	Price
42	RF48-18-AP-05-104E	Power Transmission Star Wheels Shaft A
44	RF48-18-AP-05-050	Belt Gearbox Drive Shaft
46	CAI-10X-13-004	Gearbox Coupling
48	CAI-10X-13-022	Bottle Belts Key
50	RF48-05-046	Belts Transmission Shaft 1
52	RF48-15-AP-RGA-002	Power Transmission Starwheels Shaft Threaded
54	RF48-18-AP-05-052	Corrosive Resistant SW Top Support
56	RF48-18-AP-05-040	Corrosive Resistant SW Separator A
58	RF48-18-AP-05-042	Corrosive Resistant SW Separator B
60	RF48-18-AP-05-036E	Corrosive Resistant Welded SW Support B

Item	Part No.	Part Name	Price
62	RF48-18-AP-05-020	RF Star Wheel Height Separator
64	RF48-05-200	Bevel Gear Transmission Box
66	RF48-18-AP-05-038	Corrosive Resistant SW Bottom Support
68	RF48-18-AP-05-028	RF UHMW SW Middle Support B
70	RF48-18-AP-05-037E	Corrosive Resistant Welded SW Support A
72	RF48-05-022-6	Infeed Screw RGA-A
74	RF48-18-AP-05-118E	RF Infeed Screw Support
76	GI3300-IS-21-054	Idler Support A
78	RF48-05-114E	Infeed Screw Idler Support Welded
80	RF48-18-AP-05-116E	Bevel Gear Transmission Box Adjustable Support
82	CAI-10X-21-002E-A	Universal Joint, Hole 0.750
84	CAI-10X-21-002E-B	Universal Joint Central
