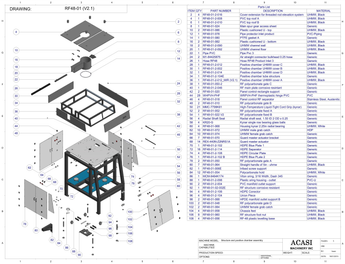

Highly Corrosive Product Rotary Pressure Overflow Filler RF48-01|Tube Structure


TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item Part No. Part Name Price
2 RF48-01-2-016 Cover Extension For Threaded Rod Elevation System
4 RF48-01-2-008 PVC Top Roof A
6 RF48-01-2-010 PVC Top Roof B
8
RF48-01-024 Main Spur Gear Access Sheet
10
RF48-01-086 Plastic Cushioned U- Top
12 RF48-01-078 Pipe Protector Inlet Product
14 RF48-01-080 PTFE Gasket A
16 RF48-01-082 Plastic Cushioned U- Bottom
18 RF48-01-2-090 UHMW Channel Wall
20 RF48-01-2-092 UHMW Channel Floor
Item Part No. Part Name Price
22 Pipe PVC Pipe Pvc 3
24
M1-84425875 Air Straight Connector Bulkhead 0.25 Hose
26 Hose RF48 PI.3 Hose RF48 Product Inlet 3
28
RF48-01-2-012 Positive Chamber UHMW Cover C
30 RF48-01-2-002 Positive Chamber UHMW Cover B
32 RF48-01-2-014 Positive Chamber UHMW Cover D
34 RF48-01-2-104E Positive Chamber Tube Structure
36 RF48-01-2-012_MIR (V2.1) Positive Chamber UHMW Cover A
37 MAC-ACASI-SER-01 Serial Nameplate
38 RF48-01-050-2 RF Polycarbonate Gate C
40 RF48-01-2-046 RF Main Plate Corrosive Resistant



Item Part No. Part Name Price
42 RF48-01-020 Panel Control Rectangle Support
44 WHPVH-PHF WRPVH-PHF Thermoplastic Hinge PVC
46 RF48-01-018 Panel Control RF Separator
48
RF48-01-010 RF Polycarbonate Gate B
50
MCM-7799K81 Hight-Temperature Liquid-Tight Cord Grip (Kynar)
52 RF48-01-052 RF Polycarbonate Fixed A
54 RF48-01-022 V2 RF Polycarbonate Fixed B
56 Radial Shaft Seal Radial Shaft Seal, 1.25 ID, 2 OD X 0.25
58 MCM-3760T252 Kynar Single Row Bearing Glass Balls
60 RF48-01-068 Housing Kynar 2.25in Radial bearing
Item Part No. Part Name Price
62 RF48-01-072 UHMW Male Grab Catch
64
RF48-01-074 UHMW Female Grab Catch
66 RF48-01-070 Guard Master Actuator Bracket
68
REX-440N-Z2NRS1A Guard Master Actuator
70 RF48-01-2-102 HDPE Blue Plate 1
72 RF48-01-2-114 HDPE Separator
74 RF48-01-2-108 HDPE Circular Plate
76 RF48-01-2-102B HDPE Blue Plate 2
78 RF48-01-050 RF Polycarbonate Gate A
80 RF48-01-064 Straight Handle of 5in-UHMW



Item Part No. Part Name Price
82 RF48-01-006E Infeed Screw Support
84 RF48-01-054 Polycarbonate Hold
86 MCM-9464K174 Viton O-Ring, 3/16 Width , Dash 345
88
RF48-01-2-098 Plastic O-Ring Housing - Outlet
90
RF48-01-2-004 PVC Manifold Outlet Support
92 RF48-01-02-002E RF Structure Corrosive Resistant
94 RF48-01-2-106 HDPE Connector
96 RF48-01-2-104 Union Piece
98 RF48-01-088 HDPE Manifold Outlet Support B
100 RF48-01-048 RF Polycarbonate Gate D
102 RF48-01-084 UHMW Female Grab Cath
104 RF48-01-058 Chassis Feet
106 RF48-01-060 RF Structure Foot Nut
108 RF48-01-056 RF-48 Plastic Levelling Base
