Automatic rotary inline pressure overflow filler machine, low viscosity, model RF48-18, by Acasi Machinery Inc.

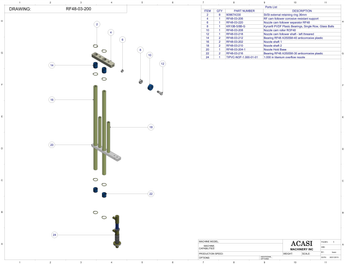

Rotary Filler RF48-01 Part RF48-03-200

Item	Part No.	Part Name
2	MCM-90967A330	St/St External Retaining Ring 36mm
4	RF48-03-206	RF Cam Follower Corrosive Resistant Support
6	RF48-03-220	Nozzle Cam Follower Separator RF48
8	KR10B-5/8B-G	Kynar PVDF Plastic Bearing, Single Row, Glass Ball
10	RF48-03-208	Nozzle Cam Roller ROF48
12	RF48-03-218	Nozzle Cam Follower Shaft-Left Threaded
14	RF48-03-212	Bearing RF48 A350SM-40 Anticorrosive Plastic

Item	Part No.	Part Name
16	RF48-03-202	Nozzle Shaft 1
18	RF48-03-210	Nozzle Shaft 2
20	RF48-03-204-1	Nozzle Hold Base
22	RF48-03-216	Bearing RF48 A350SM-30 Anticorrosive Plastic
24	TI-NOF-1.000-01-01	1.000 in Titanium Overflow Nozzle

Rotary Filler RF48-01 Part RF48-03-200
