Semi-Automatic Electronic Net Weight Filling Machine - Model PWF-1S | Pressure Cap System

Request a Quote

STRUCTURE & CHASSIS | PRESSURE CAP SYSTEM |

CONVEYOR SYSTEM | ELECTRIC PANEL

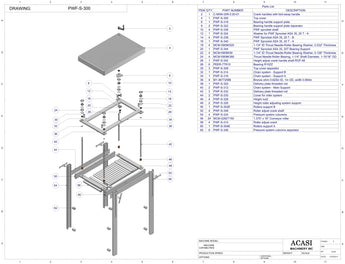

Item	Part No.	Part Name	Price
2	C-MAN-GIR-5.00-01	Crank handles with fold-away handle
4	PWF-S-306	Top cover
6	PWF-S-318	Bearing handle support plate
8	PWF-S-322	Bearing handle support plate separator
10	PWF-S-336	PWF sprocket shaft
12	PWF-S-324	Washer for PWF Sprocket ASA 35, 20 T-A
14	PWF-S-338	PWF Sprocket ASA 35, 20 T-B
16	PWF-S-340	PWF Sprocket ASA 35, 20 T-A
18	MCM-5909K520	1-1/4" ID Trust Needle-Roller Bearing Washer, 0.032" Thickness

Item	Part No.	Part Name	Price
20	PWF-S-344	PWF Sprocket ASA 35, 20T Bearing Support
22	MCM-5909K59	1-1/4" ID Trust Needle-Roller Bearing Washer, 0.126" Thickness
24	MCM-5909K380	Trust Needle-Roller Bearing, 1-1/4" Shaft Diameter, 1-15/16" OD
26	PWF-S-342	Height adjust crank handle shaft ROF-48
28	PEER-77R10	Bearing R10ZZ
30	PWF-S-308	Top cover separator
32	PWF-S-314	Chain system - Support B
34	PWF-S-316	Chain system - Support A
36	M1-06772586	Bronze shim 0.625 in ID, 1in OD, width 0.064 in

Item	Part No.	Part Name	Price
38	PWF-S-320	Delivery plate threaded rod
40	PWF-S-312	Chain system - Main support
42	PWF-S-332	Delivery plate threaded rod
44	PWF-S-330	Cover for roller system
46	PWF-S-328	Height nut2
48	PWF-S-326	Height roller adjusting system support
50	PWF-S-302E	Rollers support B
52	PWF-S-348	Roller adjust crank shaft
54	PWF-S-334	Pressure system columns
56	MCM-2282T150	1.375" x 16" Conveyor roller
58	PWF-S-310	Roller adjust crank
60	PWF-S-304E	Roller support A
62	PWF-S-346	Pressure system columns separator
