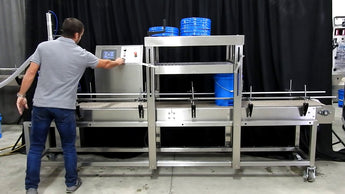

ACASI expandable semi-automatic electronic net wright filling machine model PWF-1S.
Features:
- Fill by weight.
- Top fill.
- Metal or plastic containers.
- Doran scales weight controller.
- Heavy-duty casters with locks for portability.
- Touch pad HMI.
- Rigid stainless steel frame construction.
- Rollers on scale.
Construction features:
- Single fill position with 12"X12" scale.
- Removable scale cover with rollers.
- Adjustable scale height to provide smooth transfer to downstream conveyor.
- Stainless steel welded construction.
- 30" Line height (standard).
- 2.5in stainless steel nozzle with dual position for fast and slow speed filling setup.
- Inclined roller conveyor for lid pressure capping.
- Handwheel height adjustment of pressure system assembly.
Conveyor:
- 9 feet heavy duty conveyor, stainless steel construction.
- 12in Low friction acetal chain.
- 3/4 HP gear motor driven.
- Speed control on motor conveyor way frequency drive.
Options:
- Additional product contact parts.
- Product contact parts mounted on fill cart.
- Additional fill carts (up to 2 heads).
- Gravity roller conveyors.
- Hand capper.
- Air diaphragm pump control.
Control panel features:
- Omron PLC for all machine logic functions, special modifications on programs available for special adaptations.
- Front panel Start and Emergency STOP for easy access.
- Job memory for recipe calling to minimize changeover times.
Electric and pneumatic requirements:
- 110 Volts, 60Hz, 10 Amps.
- 5 CFM @ 80 p.s.i.
