Semi-Automatic Electronic Net Weight Filling Machine - Model PWF-1S | Conveyor System

Request a Quote

STRUCTURE & CHASSIS | PRESSURE CAP SYSTEM |

CONVEYOR SYSTEM | ELECTRIC PANEL

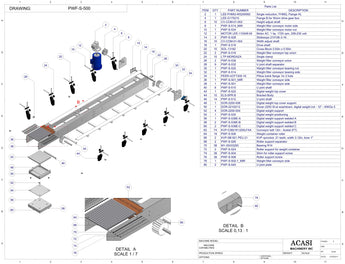

Item	Part No.	Part Name	Price
2	LEE-FHMQ-W5200082	Single reduction, FHMQ, Flange HL
4	LEE-G175210	Flange B for Worm drive gear box
6	CV-COM-01-002	Height adjust shaft
8	PWF-S-514_MIR	Weight filler conveyor motor side
10	PWF-S-534	Weight filler conveyor motor nut
12	MOTOR LEE-110048.00	Motor AC, 1hp, 1725 rpm, 208-230 volt
14	PWF-S-528	Slideways 210106-3-16
16	CV-COM-01-004	Width adjust shaft
18	PWF-S-518	Drive shaft

Item	Part No.	Part Name	Price
20	LINA-13182	Cross Block 0.50in x 0.50in
22	PWF-S-516	Weight filler conveyor top union
24	LTP-MORDAZA	Single clamp
26	PWF-S-536	Weight filler conveyor union
28	PWF-S-532	U joint shaft separator
30	PWF-S-520	Weight filler conveyor bearing nut
32	PWF-S-514	Weight filler conveyor bearing side
34	PEER-UCFT205-16	Pillow block flange 1in 2 hole
36	PWF-S-501_MIR	Weight filler conveyor side

Item	Part No.	Part Name	Price
38	PWF-S-501	Weight filler conveyor side
40	PWF-S-510	U joint shaft
42	PWF-S-522	Digital weight top cover
44	ELS-SPR.B	Bracket Body
46	PWF-S-512	U joint shaft
48	DOOR-2200-006	Digital weight top cover support
50	DOOR-22100/12	Doran 2200 St-st washdown, digital weight ind - 12" - 45KG x 5
52	DOOR-2200-004	Digital weight support

Item	Part No.	Part Name	Price
54	PWF-S-530	Digital weight positioning
56	PWF-S-538E-A	Digital weight support welded A
58	PWF-S-538E-B	Digital weight support welded B
60	PWF-S-538E-C	Digital weight support welded C
62	KVP-C0821K1200LFAA	Conveyor belt 12in - Acetal (FT)
64	PWF-S-506	Weight container roller
66	KVP-SB 821 PEU 21	KVP Sprocket, 21 teeth, width 3.12in, bore 1"
68	PWF-S-526	Roller support separator

Item	Part No.	Part Name	Price
70	M1-35433283	Bearing R14
72	PWF-S-524	Roller support for weight container
74	PWF-S-504	Shim for roller support screw
76	PWF-S-508	Roller support screw
78	PWF-S-502-1_MIR	Weight filler conveyor side
80	PWF-S-540	U joint plate
