Piston Filler - Model Trupiston-6-Vert | Piston & Valve System

Request a Quote

TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH | TANK

_______________________________________________

PISTONS

ID 7/8" (0.45 to 4.5 oz) ID 1-3/8" (1.1 to 11 oz)

ID 1-7/8" (2.1 to 21 oz) ID 2-7/8" (5.0 to 50 oz)

ID 4-1/4" (10.9 to 109 oz) ID 5-1/4" (16.7 to 167 oz)

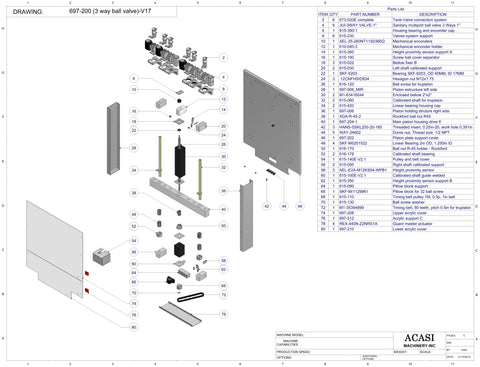

Item	Part No.	Part Name	Price
2	673-020E	Tank-Valve connection system
4	JUI-3WAY VALVE-1"	Sanitary multiport ball valve 3 ways 1"
6	615-390-1	Housing bearing and enconder cap
8	615-230	Valves system support
10	AEL-25260NT11S0360QH	Mechanical enconders
12	610-040-3	Mechanical enconder holder
14	615-360	Height proximity sensor support A
16	615-190	Screw ball cover separator

Item	Part No.	Part Name	Price
18	615-022	Bellow fixer B
20	615-030	Left shaft calibrated support
22	SKF-6203	Bearing SKF-6203, OD 40MM, ID 17MM
24	.12CNFHS/D934	Hexagon nut M12x1.75
26	616-120	Ball screw for trupiston
28	697-006_MIR	Piston estructure left side
30	M1-63416044	Enclosed bellow 2"x2"
32	615-060	Calibrated shaft for trupiston
34	615-420	Linear bearing housing cap

Item	Part No.	Part Name	Price
36	697-006	Piston holding structure right side
38	ADA-R452BF	Rockford ball nut R45
40	697-204-1	Main piston housing drive 6
42	HANS-SSKL250-20-165	Threaded insert, 0.25in-20, word hole 0.391in
44	WAY-24602	Dome nut, Thread size: 1/2 NPT
46	697-202	Piston plate support cover
48	SKF-M5201522	Linear bearing 2in OD, 1.250in ID
50	616-170	Ball nut R-45 holder - Rockford
52	616-178	Calibrated shaft bearing

Item	Part No.	Part Name	Price
54	615-140E-V2.1	Pulley and belt cover
56	615-050	Right shaft calibrated support
58	AEL-E2A-M12KS04-WPB1	Height proximity sensor
60	615-100E-V2.1	Calibrated shaft guide welded
62	615-350	Height proximity sensor support B
64	615-090	Pillow block support
66	SKF-M/1129961	Pillow block for 32 ball screw
68	615-110	Timing belt pulley 16t, 0.5p, 1in belt
70	615-130	Ball screw washer

Item	Part No.	Part Name	Price
72	M1-35394899	Timing belt, 60 teeth, pitch 0.5in for trupiston
74	697-208	Upper acrylic cover
76	697-212	Acrylic support C
78	REX-440N-Z2NRS1A	Guard master actuator
80	697-210	Lower acrylic cover
