ID 7/8" (0.45 to 4.5 oz)


TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCHTANK

Sizes  availables:

ID 7/8in | ID 1-3/8in | ID 1-7/8in | ID 2-7/8in | ID 4-1/4in  | ID 5-1/4in

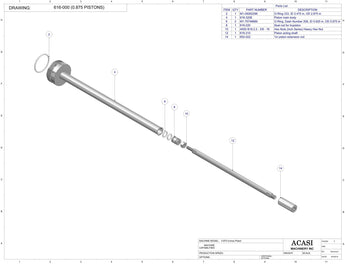

Item Part No. Part name Price
2 M1-09262296 O-Ring 333, ID 2.475 in, OD 2.875 in
4 616-320E Piston main body
6 M1-75748889 O-Ring, Dash Number 208, ID 0.625 in, OD 0.875 in
8 616-220 Seal rod for trupiston
10 ANSI B18.2.2 - 3/8 - 16 Hex Nuts (Inch Series) Heavy Hex Nut
12 616-210 Piston acting shaft
14 652-022 1in piston extension rod
