OD 3" (5.0 to 50 oz) | Teflon U-Cap
Price:
$ 2,440.00
$ 2,440.00 USD
/
PISTON & VALVE SYSTEM | TUBE STRUCTURE & CHASSIS
SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |
STANDARD TANK | TANK HEATED-AGITATION |
Sizes availables:
ID 7/8in | ID 1-1/8in | ID 1-3/8in | ID 1-7/8in | ID 2-7/8in | ID 4-1/4in | ID 5-1/4in | OD 2in U-Cap | OD 3in U-Cap

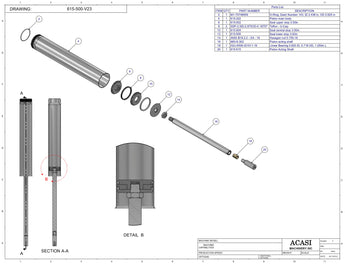

| Item | Part No. | Part name | Price |
| 2 | M1-75748559 | O-Ring, Dash 143, ID 2.438 in, OD 2.625in |  |
| 4 | 615-322 | Piston main body | |
| 6 | 615-502 |
Seal upper stop 3.00in |
|
| 8 | SSP-2.5ID-2.875OD-0.1875T | Teflon - U-Cap | |
| 10 | 615-504 | Seal central stop 3.00in | |
| 12 | 615-506 | Seal lower stop 3.00in | |
| 14 | ANSI B18.2.2 - 3/4 - 16 | Hexagon nut 0.750-16 | |
| 16 | 680-S-302 | Piston acting shaft | |
| 18 | IGU-A500-SI1011-16 | Linear Bearing 0.625 ID, 0.718 OD, 1.250in L | |
| 20 | 615-510 | Piston acting shaft | |
