Acasi
OD 2" (2.1 to 21 oz) | Teflon U-Cap
Price:
$ 1,970.00
$ 1,970.00 USD
/
PISTON & VALVE SYSTEM | TUBE STRUCTURE & CHASSIS
SERVO NOZZLE MOVEMENT | ELECTRIC PANEL TOUCH |
STANDARD TANK | TANK HEATED-AGITATION |
Sizes availables:
ID 7/8in | ID 1-1/8in | ID 1-3/8in | ID 1-7/8in | ID 2-7/8in | ID 4-1/4in | ID 5-1/4in | OD 2in U-Cap | OD 3in U-Cap

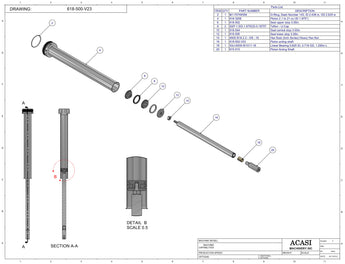

| Item | Part No. | Part name | Price |
| 2 | M1-75748559 | O-Ring, Dash 143, ID 2.438 in, OD 2.625in |  |
| 4 | 618-320E | Piston 2.1 to 21 oz (ID 1.875") | |
| 6 | 618-502 |
Seal upper stop 2.00in |
|
| 8 | SSP-1.5ID-1.875OD-0.1875T | Teflon - U-Cap | |
| 10 | 618-504 | Seal central stop 2.00in | |
| 12 | 618-506 | Seal lower stop 2.00in | |
| 14 | ANSI B18.2.2 - 3/8 - 16 | Hex Nuts (inch Series) Heavy Hex Nut | |
| 16 | 618-502-V23 | Piston acting shaft | |
| 18 | IGU-A500-SI1011-16 | Linear Bearing 0.625 ID, 0.718 OD, 1.250in L | |
| 20 | 615-510 | Piston acting shaft | |
Pickup available at 7085 NW 46th Street
