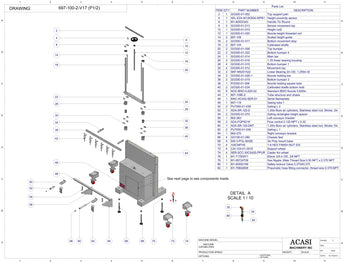

Piston Filler - Model Trupiston-6-Vert Tube Structure & Chassis

Request a Quote

TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH | TANK

Item	Part No.	Part Name	Price
2	GI3300-01-002	Top support part
4	AEL-E2A-M12KS04-WPB1	Height proximity sensor
6	ELS-77511	Handle 7in Round
8	GI3300-01-013	Sensor movement top
10	GI3300-01-010	Height nut2
12	GI3300-01-020	Nozzle height threaded rod
14	697-106	Scaled height guide
16	GI3300-01-017	Bottom movement stop

Item	Part No.	Part Name	Price
18	SKF-LJXR 20X36 ESSC2	Calibrated shafts
20	GI3300-01-008	Top bumper
22	GI3300-01-022	Bottom bumper 4
24	GI3300-01-014	Main bar
26	GI3300-01-016	1.25 linear bearing housing
28	GI3300-01-015	Bottom bumper 1
30	GI3300-01-012	Movement top
32	SKF-M5201522	Linear Bearing 2in OD, 1.250in ID
34	GI3300-01-026-1	Nozzle holding bar

Item	Part No.	Part Name	Price
36	GI3300-01-019	Bottom bumper 3
38	PI3300-01-006	Nozzle holding square tube
40	GI3300-01-034	Calibrated shafts bottom hold
42	NOZ-IBSO-0.625-02	Standard IBSO Nozzle 0.625in
44	697-108E-2	Tube structure and chasis
46	MAC-ACASI-SER-01	Serial Nameplate
48	697-118	Gating tube 1
50	PU7000-01-036	Gating L 2
52	ADA-SR-122-D	1.25in Bore air cylinders, Stainless steel rod, Stroke: 2in

Item	Part No.	Part Name	Price
54	GI3300-01-070	Gating rectangles height spacer
56	662-260	Left conveyor bracket
58	ADA-FQPS21K	Flow control 0.125 NPT x 5-32
60	ADA-SR-125-DNT	1.25in Bore air cylinders, Stainless steel rod, Stroke: 5in
62	PU7000-01-038	Gating L 1
64	662-270	Right conveyor bracket
66	GI3100-01-090	Chassis feet
68	SW-3-POL-BASE	3in Poly mount base
70	100CNFHS	1-8 Hex Finish Nut S/S

Item	Part No.	Part Name	Price
72	CAI-10X-01-051E	Support wheel
74	SER-SCC-30CS420-PPUR	Caster 4in wheel
76	M1-71783971	Elbow 3/8 in OD, 3/8 NPT
78	M1-09724709	Hex Nipple, Male Thread Size 0.50 NPT x 0.375 NPT
80	M1-00092189	Safety lockout Valve 0.375X0.375
82	M1-79802609	Pneumatic hose fitting connector, thread size 0.375 NPT

Item	Part No.	Part Name	Price
84	697-112	Trupiston 6 front cover
86	FES-159582	Filter Regulator LFT-3/8-MIDI
88	M1-36677029	Radial shaft seal 1x1.5x0.25
90	662-290	Motor support separator
92	662-280	Motor support plate
94	LEE-120923.00	2 HP Motor, 1725 RPM, 3 Phase, 220V
96	671-014	Chassis cover
98	APL-MART 16H100	Timing pulley 0.5 pitch, 16 grooves
100	ADA-CYL-8546683	Air cylinder 2.5 bore, 10in stroke
102	GI3300-01-038	Radial shaft seal housing
104	ADA-922B-RA	4 way valve, pilot double air valve
106	HPE-AS3001F-11-3	Speed controller with one-touch fittings, size 0.375 in OD
108	671-018	Trupiston bottom cover
