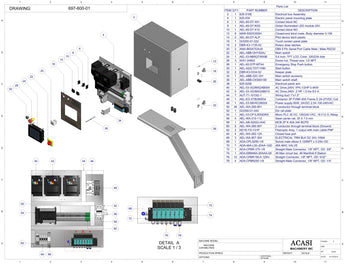

Piston Filler - Model Trupiston-6-Vert | Electric Panel Touch

Request a Quote

TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH | TANK

Item	Part No.	Part Name	Price
2	625-010E	Electrical box assembly
4	625-030	Electric panel mounting plate
6	AEL-60-D7-X01	Contact block NC
8	AEL-60-D7-N3G	Green illuminated LED module 24V
10	AEL-60-D7-X10	Contact block NO
12	MAR-SSD53SSH	Closed-end blind rivets, Body diameter 0.156
14	AEL-60-D7-ALP	Pilot device latch plastic
16	GI3300-01-032	Touch screen panel plate

Item	Part No.	Part Name	Price
18	DBR-K3-1735-52	Rotary draw latches
20	AMA-B0047534J9	DB9 9 pin Serial Port Cable Male / Male RS232
22	AEL-ABB-OHYS2AJ	Main switch
24	AEL-53-NB5QTW00B	5.6 inch, TFT LCD, Color, 320/234 dots
26	WAY-24602	Dome nut, Thread size: 1/2 NPT
28	AEL-60-D7P-MT44	Emergency Stop Push buttom
30	AEL-A22LTGT110M	Start buttom
32	DBR-K3-0334-52	Keeper plate
34	AEL-ABB-S2C-DH	Main switch accesory

Item	Part No.	Part Name	Price
36	AEL-ABB-OCS6X180	Main switch shaft
38	625-020E	Electrical panel arm
40	AEL-53-3G3MX2AB004	AC Drive, 240V, 1HP, 1/2HP 0.4KW
42	AEL-53-3G3MX2AB015	AC Dive, 240V, 2 HP 1.5 KW 8.0 A
44	AUT-T1-1015G-1	Wiring duct 1"x1.5"
46	AEL-EO-XTB290934	Contactor 3P FVNR 40A Frame D 24-27VDC Coil
48	AEL-53-S8VKC06024	Power supply 60W, 24VDC 2.5A 100-240VAC
50	AEL-WA-280-901	2-conductor through terminal block
52	GI3300-01-043	Din rail plate

Item	Part No.	Part Name	Price
54	AEL-53-CP1LM30DRA	Micro PLC 30 I/O, 100/240 VAC, 18 I/12 O, Relay
56	AEL-WA-210-112	Steel carrier rail, 35 X 7.5 mm
58	AEL-AB-S202U-K40	MCB 2P K 40A 240 BCPD
60	AEL-WA-280-907	2 conductor through terminal block (Ground)
62	KEYE-FS-V31P	Fiber optic Amp, 1 output with main cable PNP
64	AEL-WA-282-124	Closed fuse port
66	AEL-WA-857-304	Electrical TRM BLK DC 24V, 10MA
68	ADA-CPLS250-1/8	Swivel male elbow 0.125NPT x 0.25in OD

Item	Part No.	Part Name	Price
70	ADA-46A-L00-JDAA-1GD	46A Mac Valve
72	ADA-CPBR-375-1/8	Straight Male Connector, 1/8" NPT, OD: 3/8"
74	ADA-EBM46A-00AAA-08	46 Mac circuit bar, 46 Manifold 8 Station
76	ADA-CPBR156-1/8	Straight Connector, 1/8" NPT, OD: 5/32"
78	ADA-CPBR250-1/8	Straight Male Connector, 1/8" NPT, OD: 1/4"
