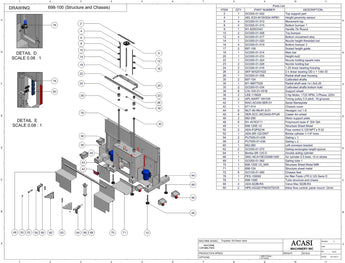

Piston Filler - Model Trupiston-16-Vert Tube Structure & Chassis


TUBE STRUCTURE & CHASSIS | PISTON & MOVEMENT SYSTEM

ELECTRIC PANEL TOUCH   TANK


Item Part No. Part Name Price
2 GI3300-01-002

Top support part

4 AEL-E2A-M12KS04-WPB1 Height proximity sensor
6 GI3300-01-012 Movement top
8 GI3300-01-015 Bottom bumper 1
9 ELS-77511 Handle 7in Round
10 GI3300-01-008 Top bumper
12 GI3300-01-017 Bottom movement stop
14 GI3300-01-020 Nozzle height threaded rod
Item Part No. Part Name Price
16 GI3300-01-019 Bottom bumper 3
17 697-106 Scaled height guide
18 GI3300-01-014 Main bar
20 GI3300-01-010 Height nut2
22 GI3300-01-024 Nozzle holding square tube
23 GI3300-01-026 Nozzle holding bar
24 GI3300-01-016 1.25 linear bearing housing
26 SKF-M/5201522 2 n linear bearing OD x 1 1/4in ID
Item Part No. Part Name Price
28 GI3300-01-038 Radial shaft seal housing
30 697-104 Calibrated shafts
31 M1-36677029 Radial shaft seal 1x1.5x0.25
35 GI3300-01-034 Calibrated shafts bottom hold
36 CAI-10X-01-051E Support wheel
38 LEE-120923.00 2 Hp Motor, 1725 RPM, 3 Phase, 220V
40 APL-MART 16H100 Timing pulley 0.5 pitch, 16 grooves
42 MAC-ACASI-SER-01 Serial Nameplate
Item Part No. Part Name Price
43 671-014 Chassis cover
44 NUT-IN-HN-#1-8-01 Hexagon nut 1-8
46 SER-SCC-30CS420-PPUR Caster 4in wheel
47 662-280 Motor support plate
48 M1-45763711 Polymount base 4" SQ QIA
49 698-120E V2 Structure Sheet Metal
50 ADA-FQPS21K Flow control 0.125 NPT x 5-32
52 ADA-SR-122-D Bimba cylinder 1-1/4" bore
Item Part No. Part Name Price
54 PU7000-01-038 Gating L 1
58 PU7000-01-036 Gating L 2
60 662-260 Left conveyor bracket
62 GI3300-01-070 Gating rectangles height spacer
64 ADA-SR-125-D Double acting cylinder
66 SMC-NCAY5EO006B1000 Air cylinder 2.5 bore, 10 in stroke
68 GI3300-01-062 Gating tube 1
70 698-120E V2_MIR Structure Sheet Metal MIR
Item Part No. Part Name Price
71 698-124 Structure Sheet Metal
72 GI3100-01-090 Chassis feet
76 FES-159582 Air filter Festo LFR 0.125 Serie D
78 698-108E Tube structure and chasis
80 ADA-922B-RA Valve Mac 922B-RA
81 HPE-AS3201FN0307SX35 Inline flow control, panel mount 12mm
