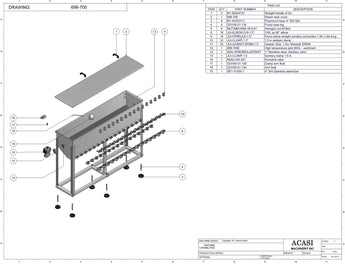

TUBE STRUCTURE & CHASSIS | PISTON & MOVEMENT SYSTEM
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 1 |
M1-82504721 |
Straight handle of 5in |
 |
| 2 | 698-708 |
Return tank cover |
|
| 3 | M1-45763711 |
Polymount base 4" SW QIA |
|
| 4 | GI3100-01-138 |
Pump base leg |
|
| 5 | NUT-MM-HNM-16-2-01 | Hexagon nut M16x2 | |
| 8 | JUI-ELBOW-316-1.5" | 316L ss 90 elbow | |
| 9 | JUI-FERRULE-1.5" |
Ferrul clamp straight sanitary connection 1.5in x 2in long |
|
| 10 | JUI-CLAMP-1.5" | 1.5 in sanitary clamp | |
| 11 | JUI-GASKET-EPDM-1.5 | Gasket, Size: 1.5in, Material: EPDM | |
| 12 | 698-706E | High temperature tank 80GL - weldment | |
| 14 | ADA-AP063BDA,AS7004T | 1" Stainless steel, Sanitary valve | |
| 15 | JUI-CLAMP-1.5 | Sanitary clamp 1.5 in | |
| 16 | NUM-LR4-201 | Numatrol valve | |
| 17 | GI3100-01-136 | Clamp arm float | |
| 18 | GI3100-01-134 | Arm float | |
| 19 | SEY-51500-1 | 4" 304 Stainless steel float | |
