Piston Filler - Model Trupiston-16-Vert Piston & Movement System

Request a Quote

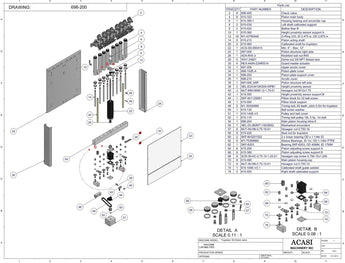

TUBE STRUCTURE & CHASSIS | PISTON & MOVEMENT SYSTEM

ELECTRIC PANEL TOUCH | TANK

Item	Part No.	Part Name	Price
2	698-400	Check valve
4	615-322	Piston main body
6	615-390-1	Housing bearing and enconder cap
8	615-030	left shaft calibrated support
9	615-022	Bellow fixer B
10	615-360	Height proximity sensor support A
12	M1-43760446	O-Ring 333, ID 2.475 in, OD 2.875 in
14	615-210	Piston acting shaft

Item	Part No.	Part Name	Price
20	615-060	Calibrated shaft for trupiston
22	ACS-SS-060414	Min: 4" - Max: 12"
24	697-006	Piston structure right side
26	ADA-R45-3	Rockford ball nut R45
28	WAY-24601	Dome nut 3/8 NPT thread size
30	REX-440N-Z2NRS1A	Guard master actuator
32	697-208	Upper acrylic cover
33	398-102E-A	Piston plate cover
34	698-202	Piston plate support cover

Item	Part No.	Part Name	Price
35	698-210	Acrylic cover
37	697-006_MIR	Piston structure left side
38	AEL-E2A-M12KS04-WPB1	Height proximity sensor
40	NUT-MM-HNM-12-1.75-01	Hexagon nut M12x1.75
42	615-350	Height proximity sensor support B
44	SKF-M/1129961	Pillow block for 32 ball screw
46	615-090	Pillow block support
48	M1-35394899	Timing belt, 60 teeth, pitch 0.5in for trupiston
50	615-130	Ball screw washer

Item	Part No.	Part Name	Price
51	615-140E-V3	Pullery and belt cover
52	615-110	Timing belt pulley 16t, 0.5p, 1in belt
54	698-204	Main piston housing drive 8
56	AEL-25-260NT11S0360Q	Mechanical enconders
57	NUT-IN-HN-0.75-16-01	Hexagon nut 0.750-16
58	615-220	Seal rod for trupiston
60	SKF-M/5201522	2in linear beraing OD x 1 1/4in ID
61	M1-75368860	Sleeve Bearings, ID 1in: OD 1-1/8in PTFE
62	SKF-6203	Bearing SKF-6203, OD 40MM, ID 17MM

Item	Part No.	Part Name	Price
64	615-200	Piston adjusting screw support A
66	615-380	Piston adjusting screw support B
68	SCR-IN-HC-0.75-10-1.25-01	Hexagon cap screw 0.750-10x1.250
70	615-080	Main piston housing cap
72	NUT-IN-HN-0.75-10-01	Hexagun nut 0.750-10
74	615-100E-V2.1	Calibrated shaft guide welded
78	615-050	Right shaft calibrated support
