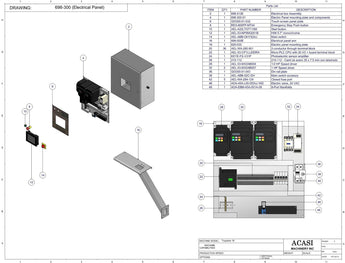

Piston Filler - Model Trupiston-16-Vert Electrical Panel Touch


TUBE STRUCTURE & CHASSIS | PISTON & MOVEMENT SYSTEM

ELECTRIC PANEL TOUCH   TANK


Item Part No. Part Name Price
2 698-512E Electrical box Assembly
4 698-300-01 Electric Panel mounting plate and components
6 GI3300-01-032 Touch screen panel plate
8 REX-800FP-MT44 Emergency Stop Push Button
10 AEL-A22LTGT110M Start button
12 AEL-53-NP5MQ001B HMI 5.7" monochrome
14 AEL-ABB-OHYS2AJ Main switch
16 698-500E Electrical panel arm
Item Part No. Part Name Price
18 625-030 Electric panel mounting plate
20 AEL-WA-280-901 2-conductor through terminal block
22 AEL-53-CP1LL20DRA Micro PLC CPU with I/O + board terminal block
24 KEYE-FS-V31P Photoelectric sensor amplifier
26 210-112 210-112 - Carril de acero 35 x 7.5mm con taladrado
28 AEL-53-MXAB004 1/2 HP Speed driver
30 AEL-53-MX2AB007 1 HP Speed driver
36 GI3300-01-043 Din rail plate
Item Part No. Part Name Price
38 AEL-ABB-S2C-DH Main switch accesory
42 AEL-WA-284-124 Closed fuse port
46 ADA-45A-L00-DDAJ-1KD Electric valve, 24 VAC
48 ADA-EBM-45A-001A-08 8-Port Manifolds
