Highly Corrosive Product Rotary Pressure Overflow Filler RF48-01| Manifold Outlet Product By Acasi Machinery

Acasi

Highly Corrosive Product Rotary Pressure Overflow Filler RF48-01| Manifold Outlet Product

$ 0.00 USD

Product variants

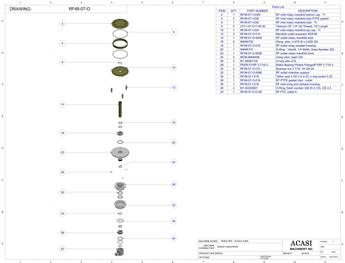

Item	Part No.	Part Name
2	RF48-07-I-032E	RF Inlet Rotary Manifold Bottom Cap- TI
4	RF48-07-I-038	RF Inlet Rotary Manifold Tube PTFE Gasket
6	RF48-07-I-036	RF Inlet Rotary Manifold Tube-TI
8	UTI-01-517-00.50	Titanium CP, 1/4"-20 Thread, 1/2" Length
10	RF48-07-I-034	RF Inlet Rotary Manifold Top Cap-TI
12	RF48-07-O-010	Manifold Outlet Separator ROF48
14	RF48-07-O-004E	RF Outlet Rotary Manifold Tube
16	MCM-9464K732	O-Ring, Viton. 2.475 ID X 3.025 OD
18	RF48-07-O-018	RF Outlet O-Ring Variseal Housing
20	MCM-9464K747	O-Ring Viton , 1/4 Width, Dash Number 423

Item	Part No.	Part Name
22	RF48-07-O-002E	RF Oulet Rotary Manifold Drive
24	MCM-9464K56	O-Ring Viton, Dash 333
26	M1-09267105	O-Ring Viton 210
28	PEER-FYRP 3.7/16-3	Roller Bearing Piloted Flanged FYRP 3 7/16-3
30	RF48-07-O-012	Spanner Nut 3 7/16-16 UN 2A
32	RF48-07-O-006E	RF Outlet Chamber Support
34	RF48-07-I-019	Teflon Seal 3 OD 2.5in ID, O-Ring Center 0.25
36	RF48-07-O-016	RF PTFE Gasket Inlet-Outlet
38	RF48-07-I-018	RF Inlet O-Ring and Variseal Housing
40	M1-02245801	O-Ring, Dash Number 346 ID 4.125, OD 4.5
42	RF48-07-O-014E	RF PVC Outlet A
