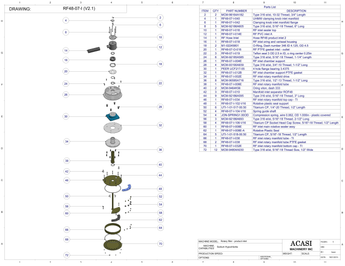

Highly Corrosive Product Rotary Pressure Overflow Filler RF48-01| Manifold Inlet Product

Request a Quote

TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP

Item	Part No.	Part Name	Price
2	MCM-98164A182	Type 316 st/st, 10-32 Thread, 3/4" Length
4	RF48-07-I-040	UHMW Clamping Knob Inlet Manifold
6	RF48-07-I-042	Clamping Knob Inlet Manifold Flange
8	MCM-92186A605	Type 316 st/st 5/16"- 18 Thread, 6" Long
10	RF48-07-I-016	RF Inlet Sealer Top
12	RF48-07-I-014E	RF PVC Inlet A
14	RF Hose Inlet	Hose RF48 Product Inlet 2
16	RF48-07-I-018	RF Inlet Oring and Variseal Housing
18	M1-02245801	O-Ring, Dash Number 346 ID 4.125 , OD 4.5
20	RF48-07-O-016	RF PTFE Gasket Inlet- Outlet

Item	Part No.	Part Name	Price
22	MCM-9505K112	Teflon Seal 3 OD 2.5 in ID , O-Ring Center 0.25in
24	MCM-92185A585	Type 316 st/st, 5/16'-18 Thread, 1-1/4" Lenght
26	RF48-07-I-004E	RF Inlet Chamber Support
28	MCM-93190A839	Type 316 st/st, 3/4'-10 Thread, 1-1/2" Length
30	PEER UCF217-55	4 Hole Flange Bearing 3.4375
32	RF48-07-I-012B	RF Inlet Chamber Support PTFE Gasket
34	RF48-07-I-002E	RF Inlet Rotary Manifold Drive
36	MCM-90585A716	Type 316 st/st, 1/2"-13 Thread, 1-1/2" Length
38	RF48-07-I-006E	RF Inlet Rotary Manifold Tube
40	MCM-9464K56	Oring Viton, Dash 333

Item	Part No.	Part Name	Price
42	RF48-07-I-010	Manifold Inlet Separator ROF48
44	MCM-92186A595	Type 316 st/st, 5/16"-18 Thread, 3" Length
46	RF48-07-I-034	RF Inlet Rotary Manifold Top Cap-TI
48	RF48-07-I-102-V16	Rotative Plastic Seal Support
50	UTI-1-01-517-00.50	Titanium CP, 1/4"-20 Thread, 1/2" Length
52	RF48-07-I-104-V16	Spring Guide Shaft
54	JON-SPRING1.00OD	Compression Spring Wire 0.062, OD 1.000in- Plastic Covered
56	MCM-92186A693	Type 316 st/st, 5/16"-18 Thread, 2 1/2" Length
58	RF48-07-I-106-V16	Titanium CP Socket Head Cap Screw, 5/16"-18 Thread, 1/2" Length
60	RF48-07-I-008E	RF inlet main rotative sealer assy

Item	Part No.	Part Name	Price
62	RF48-07-I-008E-A	Rotative Plastic Seal
64	UTI-1-01-518-00.50	Titanium CP, 5/16"-18 Thread, 1/2" Length
66	RF48-07-I-036	RF Inlet Main Rotative Sealer Assy
68	RF48-07-I-038	RF Inlet Rotary Manifold Tube PTFE Gasket
70	RF48-07-I-032E	RF Inlet Rotary Manifold Bottom Cap-TI
72	MCM-94804A030	Type 316 st/st, 5/16"-18 Thread, 1/2" Wide
