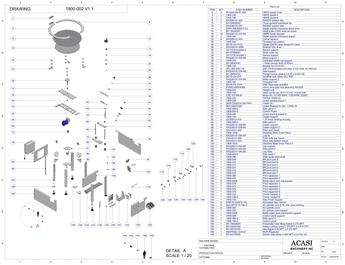

Bottle Reject System - Model 1900-002 V1.1 | Structure

Request a Quote

STRUCTURE | ELECTRIC PANEL | CONTROL PANEL

Item	Part No.	Part Name	Price
2	RU3200-MI-01-224	HDPE Guide Union
4	1900-146	HDPE Guide A
6	1900-148	HDPE Guide B
8	RA3200-01-020	RA3200 Rotative Disc
10	M1-64829500	Three Spoked Handwheel 5in
12	RA3042-01-004	RA3200 Support Disc

Item	Part No.	Part Name	Price
14	DD51-AN-0050-D-C2	Digital Position Indicators Direct Drive
16	M1-35465327	Shaft Collar 0.500, Solid Set Screw
18	RA4200-01-012-MI	HDPE Guide Suport
20	1900-046	Digital Position Indicators Support
22	RA3200-01-054	Corner Support
24	1900-044	Threaded Rod Washer

Item	Part No.	Part Name	Price
26	KEYE-GV-H130	Digital CMOS Laser Sensor GV Serie
28	RA3200-01-006E	Rotative Disc Drive
30	GV-H130 Bracket 2	Sensor Support
32	M1-87986642	Shaft Collar 1in
34	GV-H130 Bracket 1	Sensor Support
36	RA3200-01-028-MI	Motor Support 1
38	1900-034	Calibrated Shafts Top Support

Item	Part No.	Part Name	Price
40	M1-06043343	1.00 in Bronze Shim (0.065in)
42	1900-126	Bracket For CV-H130
44	AEL-WA-249-116	249-116 Screwless end Stop, 6mm Wide for Din Rail 35 x 15 and 35 x 7.5
46	RA3200-01-026-MI	Side Support
48	M1-06454722	Flange Bronze Bearinf 0.5 ID X 0.625 OD
50	KEYE-GV-21P	Amplifier Unit, Main Unit,PNP

Item	Part No.	Part Name	Price
52	RA3200-01-030-MI	Motor Support 2
54	1900-040	Threaded Rod
56	KEYE-FS-V31P	PNP Fiber Optic Amplifier
58	FHMQ-W5200088	Worm Drive Gear Box Assembly RA3200
60	1900-042	Height Nut 2
62	AEL-WA-210-112	Steel Carrier Rail, 35 x 7.5 mm, 1mm/0.039

Item	Part No.	Part Name	Price
64	LEE-101769.00	Motor AC, 1/3 HP, 208V, 1750 RPM, SS56C
66	1900-030	Vertical Shafts (3)
70	1900-038	Linear Bearing Support 1
72	SER-C0020741ZM-TPR1	Caster 2 in
74	SKF-M5201522	Linear Bearing 2in OD, 1.250 in ID

Item	Part No.	Part Name	Price
76	1900-048-2	Side Panel 3
78	1900-004-5	Control Panel
80	1900-036	Linear Bearing Support 2
81	1900-144	Caster Support
82	GI3300-01-016	1.25 Linear Bearing Housing
84	1900-088-2	Side Panel 2
86	RA3200-01-036-MI	Caster Support

Item	Part No.	Part Name	Price
88	RA3200-01-038-MI	Caster Support 2
90	GI3100-01-055	Fiber Optic Head
92	1900-152B	Stainless Steel Union Piece
94	RA3200-01-040-MI	Leg 1A
96	GI3100-01-056	FIber Optic Top Mount`
98	GI3100-01-054	FIber Optic Bottom Mount`

Item	Part No.	Part Name	Price
100	1900-152A	Stainless Steel Union Piece 2
102	RA3200-01-042-MI	Leg Support
104	RA3200-01-056-MI	Side Panel 2
106	RA3200-01-044-MI	Leg Base
108	1900-028-2	Side Panel 1
110	1900-066	Side Guide Pivot Shaft

Item	Part No.	Part Name	Price
112	1900-008	BR Pivot Part A
114	1900-010	BR Pivot Part B
116	1900-012	BR Pivot Part C
118	1900-014	BR Pivot Part D
120	1900-016	BR Pivot Part E
122	1900-018	BR Pivot Part F

Item	Part No.	Part Name	Price
124	1900-068	Pivot Separator 1
126	1900-070	Pivot Separator 2
128	1900-058E	Bottle Reject Pivot Mechanism
130	1900-072	Pivot Separator 3
132	1900-074	Pivot Separator 4
134	1900-076	Pivot Separator 5

Item	Part No.	Part Name	Price
136	1900-078	Pivot Separator 6
138	1900-122	Corner Support A
140	1900-120-2	Corner Support B
142	1900-150	Side Panel Support
144	DHP-H133-M16-150	Articulated Feet 100 mm
146	042-DPY (F,D-166-3)	Air Cylinder Bore0.75, Rear Pivot Bushing

Item	Part No.	Part Name	Price
148	1900-050	Air Cylinder Pivot
150	1900-052	Air Cylinder Pivot Support
152	1900-026E	Bottle Reject Pivot Mechanism Support
154	1900-006	Control Panel Support
156	1900-082-2	Side Panel 2
158	1900-106-2	Control Panel

Item	Part No.	Part Name	Price
160	M1-79802609	Pneumatic Hose Fitting Thread 0.375 NPT
162	M1-00092189	Safety Lockout Valve0.375 FPT X 0.375 FPT
164	M1-09724709	Hex Nipple 0.50 NPT X 0.375 NPT
166	ADA-MGFR300-10-M-W	MGR-Regulator
168	M1-62378559	Swivel Male Elbow 0.500 NPT X 0.375 in OD
