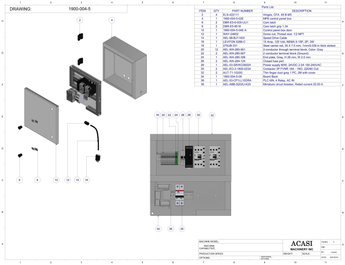

Bottle Reject System - Model 1900-002 V1.1 | Electric Panel
$ 0.00 USD
/
STRUCTURE | ELECTRIC PANEL | CONTROL PANEL
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | ELS-422111 | Hinges, CFA. 49 B-M5 |  |
| 4 | 1900-004-5-02E | MP8 Control Panel Box | |
| 6 | DBR-E5-6-005-UU1 | Cam Latch | |
| 8 | DBR-E5-8018 | Cam Latch Grip 1.34 | |
| 10 | 1900-004-5-04E-A | Control Panel Box Door | |
| 12 | WAY-24602 | Dome Nut, Thread Size: 1/2 NPT | |
| 14 | AEL-98-BJ11403 | Speed Drive Cable | |
| 16 | LEVITON 5266-C | 15 Amp. 125 Volt, NEMA 5-15P,2P,3W | |
| 18 | AEL-WA-210-211 |
Steel Carrier Rail, 35 X 7.5mm, 1mm/0.039 in Thick Slotted | |
| 20 | AEL-WA-280-901 | 2-Conducto Through Terminal Block, Color: Gray | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 22 | AEL-WA-280-907 | 2 Conductor Terminal Block (Ground) | |
| 24 | AEL-WA-280-308 | End Plate, Gray, H 28mm, W 2.5 mm | |
| 26 | AEL-WA-284-124 | Closed Fuse Port | |
| 28 | AEL-53-S8VKC06024 | Power Supply 60W, 24 VDC 2.5 A 100-240VAC | |
| 30 | AEL-EO-3-1800-023A | Contactor 3P FVNR 18A-1NO, 220/60 Coil | |
| 32 | AUT-T1-1020G | Thin Finger Duct Grey 1 PC, 2M With Cover | |
| 34 | 1900-004-5-06 | Board Back | |
| 36 | AEL-53-CP1LL10DRA | PLC 6IN, 4 Relay, AC IN | |
| 38 | AEL-ABB-S202U-K25 | Miniature Circuit Breaker, Rated Current 25.00 A | |
