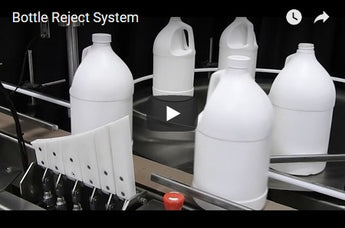

Bottle Reject Model 1900-002 - Videos


Automatic Inline Bottle Reject- Model 1900-002 has the corresponding multi-segment rejector in its range for the most different container sizes, shapes and materials as well as for the most varied applications.

Construction Features

  • 304 Stainless steel heavy duty stainless steel frame.
  • All shafts and threaded rods manufactured in 304 stainless steel.

  • Calibrated guide for fast heidht settings.

Control panel features:

  • Omron PLC for all machine logic functions, special modifications on programs available for special adaptations.
  • 5 in Omron HMI for all machine functions and delays.
  • Frequency control drive conveyor speed, acceleration and deceleration.
  • Front panel Start and Emergency STOP for easy access.
  • Rejection of glass and PET containers.
  • Pneumatically controlled pusher elements.
  • Rejection onto an accumulating rotary table.

Standard features:

  • Container height adjustment from 7.5 to 18 inches high.
  • Will work with plastic or glass containers.
  • No change parts needed for various types of containers.
  • The bottle reject can also be easily integrated into existing lines.
  • The bottle reject safely rejects fallen-over, empty, partially filled and full containers.

Rotary table Features:

  • 42-inch diameter table manufactured in 1/8” width 304 stainless steel.
  • Support of stainless steel disc by ½ inch aluminum plate.
  • Main structure manufactured in 1/8” width 304 stainless steel.
  • Includes stainless steel covers on 4 sides.
  • Powered by 3-phase AC motor.
  • Speed control by VFD.
  • Variable speed up to 150 containers per minute.

Electric and pneumatic requirements:

  • 220 Volts, 60Hz, 5 Amps.
  • 5 CFM @ 80 p.s.i.
