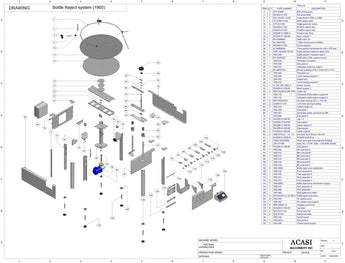

Bottle Reject System - Model 1900-002 | Structure

Request a Quote

STRUCTURE | ELECTRIC PANEL | CONTROL PANEL

Item	Part No.	Part Name	Price
2	SYS-39469L	Rail conical guide
4	RA3042-01-022	Rail guide shaft
6	SOL-VG-621-12-58	Cross block 0.625in x 0.50in
8	CV-COM-01-004	Width adjust shaft
10	LTP-ACA-001	Single guide rail clamp
12	RA3200-01-020	RA3200 rotative disc

Item	Part No.	Part Name	Price
14	RA3042-01-004	RA3200 support disc
16	RA3200-01-006E-A	Rotative disc drive
18	RA3200-01-28-MI	Motor support 1
20	M1-87986642	Shaft collar 1in
22	M1-06043343	1.000in bronze shim (0.065in)
24	RA-3200-01-054	Corner support

Item	Part No.	Part Name	Price
26	M1-64829500	Three spoked handwheel 4in with 0.375 hole
28	DD51 AN 0050 AR NO	Digital position indicators direct drive
30	1900-046	Digital position indicators support
32	M1-35465327	Shaft collar 0.500, solid set screw
34	1900-044	Threaded rod washer
36	1900-048	Side panel 3
38	1900-034	Calibrated shaft top support

Item	Part No.	Part Name	Price
40	M1-0654722	Bronze bushing 0.5 ID x 0.625 OD x 0.75 L
42	1900-040	Threaded rod
44	1900-038	Linear bearing support 1
46	1900-042	Height nut 2
48	1900-036	Linear bearing support 2
50	IV-150_500_2000_2	Sensor camera

Item	Part No.	Part Name	Price
52	RA3200-01-030-MI	Motor support 2
54	SER-C0020741ZM-TPR1	Caster 2in
56	1900-120	Calibrated shaft bottom support B
58	1900-122	Calibrated shaft bottom support A
60	SKF-M/5201522	2in linear bearing OD x 1 1/4in ID
62	GI3300-01-016	1.25 linear bearing housing

Item	Part No.	Part Name	Price
64	1900-030	Vertical shaft (3)
66	1900-028	Side panel 1
68	1900-091	Secondary plastic electrical box BR
70	1900-088	Side panel 2
72	RA3200-01-040-MI	Leg 1 A
74	RA3200-01-042-MI	Leg support

Item	Part No.	Part Name	Price
76	RA3200-01-038-MI	Caster support 2
78	RA3200-01-026-MI	Side support
80	RA3200-01-036-MI	Caster support
82	ANSI B18.22-1/2-13	Hex nuts (inch series) Hex nut
84	RA3200-01-006E-B	RA3200 shaft drive
86	FHMQ-W5200088	Worm drive gear box assembly RA3200

Item	Part No.	Part Name	Price
88	LEE-101769	Motor AC, 1/3 HP, 208V, 1750 RPM, SS56C
90	RA3200-01-056-MI	Side panel 2
92	1900-008	BR pivot part A
94	1900-010	BR pivot part B
96	1900-012	BR pivot part C
98	1900-014	BR pivot part D

Item	Part No.	Part Name	Price
100	1900-016	BR pivot part E
102	1900-018	BR pivot part F
104	1900-058E	Bottle reject pivot mechanism
106	1900-078	Pivot separator 6
108	1900-076	Pivot separator 5
110	1900-074	Pivot separator 4

Item	Part No.	Part Name	Price
112	1900-072	Pivot separator 3
114	1900-026E	Bottle reject pivot mechanism support
116	1900-070	Pivot separator 2
118	1900-068	Pivot separator 1
120	1900-066	Side guide pivot shaft
122	SR-042-DPY_F_D-166-3	Bottle reject pivot piston

Item	Part No.	Part Name	Price
124	1900-050	Air cylinder pivot
126	1900-052	Air cylinder pivot support
128	AME-HNMX-16	Hexagon nut M16x2
130	RA3200-01-044-MI	Leg base
132	GI3100-01-0138	Pump base leg
134	ELS-301251	Reinforced base
136	1900-106	Control panel
138	1900-082-2	Side panel 2
140	1900-006	Control panel Support
