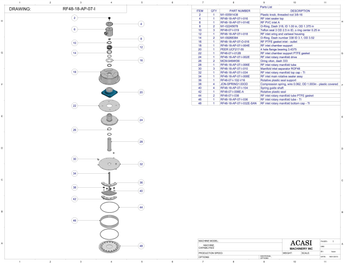

Rotary Pressure Overflow Filler RF48-18| Manifold Inlet Product
$ 0.00 USD
/
TUBE STRUCTURE| ROTARY NOZZLE SYSTEM| ROTARY STARWHEELS SYSTEM| MANIFOLD| NOZZLE CAM SYSTEM| ELECTRIC PANEL| TANK AND PUMP
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | M1-00591438 | Plastic Knob, Threaded Rod 3/8-16 |  |
| 4 | RF48-18-AP-07-I-016 | RF Inlet Sealer Top | |
| 6 | RF48-18-AP-07-I-014E | RF PVC Inlet A | |
| 8 |
M1-02245678 | O-Ring, Dash 318, ID 1.00in, OD 1.375in | |
| 10 |
RF48-07-I-019 | Teflon Seal 3 OD 2.5 ID, O-Ring Center 0.25in | |
| 12 | RF48-18-AP-07-I-018 | RF Inlet O-ring and Veriseal Housing | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 14 |
M1-09268384 | O-Ring, Dash Number 338 ID 3.1, OD 3.52 | |
| 16 |
RF48-18-AP-07-O-016 | RF PTFE Gasket Inlet- Outlet | |
| 18 |
RF48-18-AP-07-I-004E | RF Inlet Chamber Support | |
| 20 |
PEER UCF217-55 | 4 Hole Flange Bearing 3.4375 | |
| 22 |
RF48-07-I-012B | RF Inlet Chamber Support PTFE Gasket |
|
| 24 |
RF48-18-AP-07-I-002E | RF Inlet Rotary Manifold Drive | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 26 | MCM-9464K56 | Oring Viton, Dash 333 | |
| 28 |
RF48-18-AP-07-I-006E | RF Inlet Rotary Manifold Tube | |
| 30 |
RF48-18-AP-07-I-010 | Manifold Inlet Separator ROF 48 | |
| 32 |
RF48-18-AP-07-I-034 | RF Inlet Rotary Manifold Top Cap-TI | |
| 34 |
RF48-18-AP-07-I-008E | RF Inlet Main Rotative Sealer Assy | |
| 36 | RF8-07-I-102-V16 | Rotative Plastic Seal Support | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 38 |
JON-SPRING1.00OD | Compression Spring, Wire 0.062, OD 1.00in- Plastic Covered | |
| 40 |
RF48-18-AP-07-I-104 | Spring Guide Shaft | |
| 42 |
RF48-07-I-008E-A | Rotative Plastic Seal | |
| 44 |
RF48-07-I-038 | RF Inlet Rotary Manifold Tube PTFE Gasket | |
| 46 |
RF48-18-AP-07-I-036 | RF Inlet Rotary Manifold Tube- TI | |
| 48 | RF48-18-AP-07-I-032E-SAN | RF Inlet Rotary Manifold Bottom Cap- TI | |
