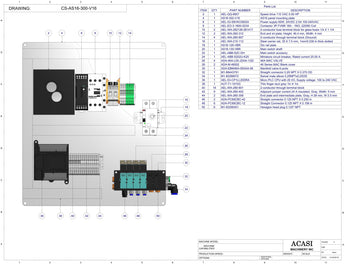

Semi Automatic Single Head Cap Tightener – Model AS-CS16 Electric Panel System



CHASSIS SYSTEM | CAPPER MOVEMENT SYSTEM

ELECTRIC PANEL SYSTEM

Item Part No. Part Name Price
2 AEL-QQ-9957 Speed drive 115 VAC 0.50 HP
4 AS16-302-V16 AS16 panel mounting plate
6 AEL-53-S8VKC06024 Power supply 60W, 24VDC 2.5A 100-240VAC
8 AEL-EO-3-1800-023A Contactor 3P FVNR 18A - 1NO, 220/60 Coil
10 AEL-WA-282128-281417 2-conductor fuse terminal block for glass fuses 1/4 X 1 1/4
12 AEL-WA-282-312 End and int plate, Height: 46.4 mm, Width: 4 mm
14 AEL-WA-280-907 2-conductor through terminal block (Ground)
16 AEL-WA-210-112 Steel carrier rail, 35 X 7.5 mm, 1mm/0.039 in thick slotted
Item Part No. Part Name Price
18 AS16-126-VBR Din rail plate
20 AS16-130-VBR Main switch shaft
22 AEL-ABB-S2C-DH Mini breaker mechanism
24 AEL-ABB-S202U-K25 Miniature circuit breaker, Rated current 25.00 A
26 ADA-46A-L00-JDAA-1GD 46A MAC VALVE
28 ADA-M-46002 46 Series MAC Blank cover
30 ADA-EBM46A-00AAA-06 Manifold valve 6 ports
32 M1-88443791 Straight connector 0.25 NPT X 0.375 OD
Item Part No. Part Name Price
34 M1-82288572 Swivel male elbow 0,25NPTx0,25OD
36 AEL-53-CP1LL20DRA Micro PLC with 20 I/O, voltage: 100/240 VDC. inputs 18
38 AUT-T1-1010G Thin finger duct grey 1in X 1in
40 AEL-WA-280-901 2-conductor through terminal block
42 AEL-WA-280-402 Adjacent jumper nominal current 24 A insulated
44 AEL-WA-280-308 End plate and intermediate plate, Gray, H 28 mm, W 2.5 mm
46 ADA-PC68CBC-42 Straight connector 0.125 NPT X 0.250 in
48 ADA-PC68CBC-12 Straight Connector 0.125 NPT X 0.156 in
50 M1-83295451 Hexagon head plug 0.125" NPT
