Semi Automatic Single Head Cap Tightener – Model AS-CS16 Chassis System

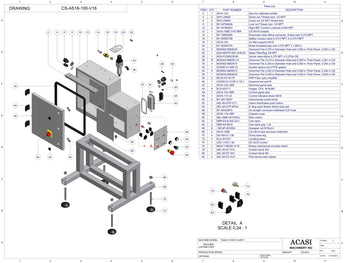

CHASSIS SYSTEM | CAPPER MOVEMENT SYSTEM

ELECTRIC PANEL SYSTEM

Item Part No. Part Name Price
2 AS16-122 Strut for calibrated shafts
4 WAY-24602 Dome nut, Thread size: 1/2 NPT
6 WAY-24604 Dome nut 3/4 NPT thread size
8 M1-04784849 Lock nut Thread size: 3/4 NPT
10 M1-04784823 Rigid IMC Conduit Locknuts 0.500 NPT
12 AS16-108E-V16-VBR CS-AS16 chassis
14 M1-79802609 Pneumatic hose fitting connector, thread size 0.375 MPT
16 M1-00092189 Safety Lockout valve 0.375 FNPT X 0.375 FNPT
Item Part No. Part Name Price
18 AS16-120 Air filter support AS16
20 M1-02204378 Brass threaded pipe size 0.375 NPT x 1.000 in
22 MCMAS-9600K25 Grommet Fits 0.375 in Diameter Hole and 0.063 in Thick Panel, 0.500 in OD
24 ADA-MGFR-300-10-M-W Mead Filter/Reg 3/8 NPT
26 ADA-PC69SCB-66 Swivel male elbow 0,375 NPT x 0,375in OD
28 MCMAS-9600K114 Grommet Fits 0.219 in Diameter Hole and 0.093 in Thick Panel, 0.281 in OD
30 MCMAS-9600K75 Grommet Fits 0.250 in Diameter Hole and 0.063 in Thick Panel, 0.344 in OD
32 GI3300-21-008 V2 Auxiliar sensor box PTFE gasket
Item Part No. Part Name Price
34 MCMAS-9600K73 Grommet Fits 0.250 in Diameter Hole and 0.063 in Thick Panel, 0.344 in OD
36 MCMAS-9600K33 Grommet Fits 0.438 in Diameter Hole and 0.093 in Thick Panel, 0.625 in OD
38 KEYE-FS-N11P PNP Fiber optic amplifier
40 GI3300-21-012E-C V2-1 Keyence box part B
42 AS16-122-VBR Electrical panel seal
44 ELS-422111 Hinges, CFA. 49 B-M5
46 AS16-124-VBR Control panel door
48 AS16-110 V2 Control indicator sheet AS16
Item Part No. Part Name Price
50 M1-06172837 Instrumental control knob
52 AEL-60-D7P-LF3 Green illuminated push button
54 AEL-60-D7P-MT44 E Stop push Button 40mm twist red
56 M1-84425875 Air straight connector bulkhead 0.25 hose
58 AS16-116-VBR Chassis cover
60 AEL-ABB-OHYS2AJ Main switch
62 DBR-E5-6-005-UU1 Cam latch
64 DBR-E5-8018 Cam latch grip 1.34
Item Part No. Part Name Price
66 .16CNFJS/D934 Hexagon nut M16x2.0
68 AS16-106E CS-AS16 tube structure weldment
70 GI3100-01-138 Pump base leg
72 ELS-301251 Levelling base
74 LEE-174311.00 DC SCR Control
76 NEW-71BD36-3119 Rotary mechanical encoder switch
78 AEL-60-D7-X10 Contact block NO
80 AEL-60-D7-X01 Contact block NC
82 AEL-60-D7-ALP Pilot device latch plastic
