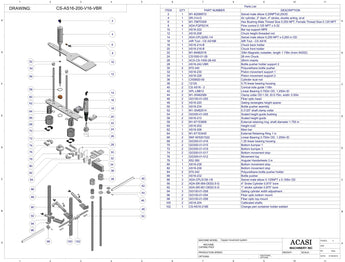

Semi-Automatic Single Head Cap Tightener – Model AS-CS16 Capper Movement System

Request a Quote

CHASSIS SYSTEM | CAPPER MOVEMENT SYSTEM

ELECTRIC PANEL SYSTEM

Item	Part No.	Part Name	Price
2	M1-82288572	Swivel male elbow 0,25NPTx0,25OD
4	SR-314-D	Air cylinder, 2" diam, 4" stroke, double acting, st-st
6	M1-79870309	Hex Bushing Male Thread Size 0.250 NPT, Female Thread Size 0.125 NPT
8	ADA-FQPS21K	Flow control 0.125 NPT x 5-32
10	AS16-222	Bar top support MP8
12	AS16-208	Chuck height threaded rod
14	ADA-CPLS250-1/4	Swivel male elbow 0,250 NPT x 0,250 in OD
16	CS AS16B	Air Tool

Item	Part No.	Part Name	Price
18	AS16-214-B	Chuck back holder
20	AS16-216-B	Chuck front holder
22	M1-84982016	3/8in Magnetic nutsetter, length 1 7/8in
24	CS1000-01-28	28 mm Chuck
26	ACA-CS-1000-28-AS	28mm inserts1
28	AS16-242-VBR	Bottle pusher holder support 2
30	975-340	Polyurethane bottle pusher
32	AS16-230	Piston movement support 2

Item	Part No.	Part Name	Price
34	AS16-228	Piston movement support 2
36	CXSM20-50	Cylinder dual rod
38	12120	0.75 linear bearing housing
40	CS AS16 - 2	Conical side guide 118in
42	APL-LBB12	Linear Bearing 0.750in OD, 1.250in ID
44	M1-35462589	Clamp collar OD:1.50, ID:0.75in, width: 0.50in
46	GI3100-01-055	Fiber optic head
48	AS16-220	Gating rectangles height spacer

Item	Part No.	Part Name	Price
50	AS16-234	Bottle pusher asembly
52	M1-35462514	0.3125" shaft clamp collar
54	GI3300-01-005	Scaled height guide bushing
56	AS16-212	Scaled height guide
58	M1-67153809	External retaining ring, shaft diameter 1.750 in
60	AS16-202	Height nut2
62	AS16-206	Main bar
64	M1-67153445	External Retaining Ring 1 in

Item	Part No.	Part Name	Price
66	SKF-M/5201522	Linear Bearing 0.750in OD, 1.250in ID
68	GI3300-01-016	1.25 linear bearing housing
70	GI3300-01-015	Bottom bumper 1
72	GI3300-01-019	Bottom bumper 3
74	GI3300-01-017	Bottom movement stop
76	GI3300-01-012	Movement top
78	652-360	Angular Handwheels 3 in
80	AS16-238	Bottom movement stop

Item	Part No.	Part Name	Price
82	AS16-236	Bottom movement stop
84	975-342	Polyurethane bottle pusher holder
86	AS16-232	Bottle pusher
88	ADA-CPLS156-1/8	Swivel male elbow 0.125NPT x 0.156in OD
90	ADA-SR-064-DEE0.5-G	4" Sroke Cylinder 0.875" bore
92	ADA-SR-061-DEE0.5-G	1" stroke cylinder 0.875" bore
94	GI3100-01-058	Gating cylinder width adjustment
96	GI3100-01-054	Fiber optic bottom mount

Item	Part No.	Part Name	Price
98	GI3100-01-056	Fiber optic top mount
100	AS16-204	Calibrated shafts
102	CS-AS16-218E	Change part container holder welded
