Gear Pump Filler - Model TruPump-275UB | Electrical Panel

Request a Quote

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH |

PUMP SYSTEM | FILLER AREA PROTECTED

_______________________________________________________

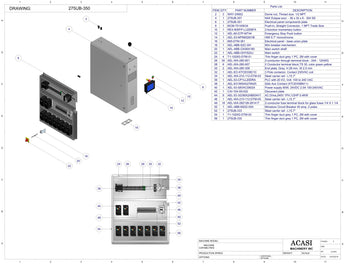

COMPLETE ASSY | ELECTRICAL PANEL

Item	Part No.	Part name	Price
2	WAY-24602	Dome nut, Thread size: 1/2 NPT
4	275UB-357	N4X Eclipse encl. - 36 x 30 x 8 - 304 SS
6	275UB-351	Electrical panel components plate
8	MCM-75145K34	Push-in, Straight Connector, 1 NPT thread size
10	REX-800FP-LU2EBFA	2-function momentary button
12	AEL-60-D7P-MT44	E stop push Button 40mm twist red
14	AEL-53-NP5MQ001B	HMI 5.7" monochrome

Item	Part No.	Part name	Price
16	695-DTM-361	Electrical panel - base union plate
18	AEL-ABB-S2C-DH	Mini breaker mechanism
20	AEL-ABB-OXS6X180	Main switch shaft
22	AEL-ABB-OHYS2AJ	Main switch
24	T1-1020G-DTM-01	Thin finger duct grey 1 PC, 2M with cover
26	AEL-WA-280-901	2-conductor through terminal block
28	AEL-WA-280-907	2-conductor through terminal block, mounting: TS 35, green-yellow

Item	Part No.	Part name	Price
30	AEL-WA-280-308	End stop 6mm
32	AEL-EO-XTCE038C10	3 Pole contactor, Contact 230VAC coil
34	AEL-WA-210-112-DTM-01	Steel carrier rail - L15.7"
36	AEL-53-CP1LL20DRA	Micro PLC with 20 I/O, voltage: 100/240 VDC
38	AEL-EO-MSAA278425	Side aux contact (XTCEXSBN11)
40	AEL-53-S8VKC06024	Power supply 60W, 24VDC 2.5A 100-240VAC
42	CAI-10X-09-022	Disconnect plate

Item	Part No.	Part name	Price
44	AEL-53-3G3MX2AB004V1	AC Drive, 240V 1PH, 1/2HP 0.4KW
46	AEL-WA-210-112-DTM-05	Steel carrier rail - L15.7"
48	AEL-WA-282128-281417	2-Conductor fuse terminal block for glass fuses 1/4 x 1 1/4
50	AEL-ABB-M202-50A	Miniature circuit breaker 40 Amp, 2 poles
52	275UB-333	Steel carrier rail - L15.7"
54	T1-1020G-DTM-03	Thin finger duct grey 1 PC, 2M with cover
56	275UB-335	Thin finger duct grey 1 PC, 2M with cover
